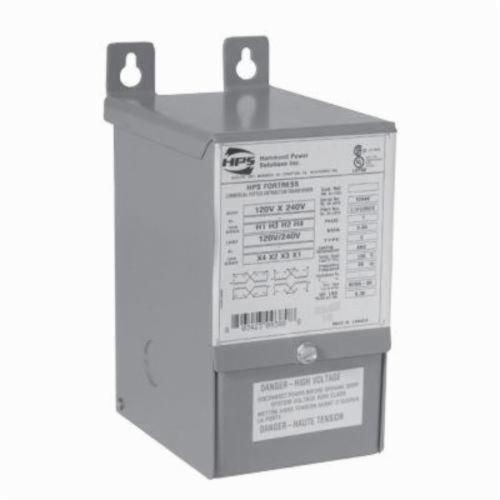

HPS Fortress™ C1FC50LE Commercial Potted Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 0.5 kVA, 60 Hz
HPS Fortress™ C1FC50LE Commercial Potted Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 0.5 kVA, 60 Hz
SKU: HAMC1FC50LE
Manufacturer Part Number: C1FC50LE
UPC: 803423090692
Documents
Short Description
Features
- Innovative potted design provides single screw access on a hinged cover to the wiring compartment for commercial indoor and outdoor applications
- Totally enclosed to seal out moisture and airborne contaminants
- Rear and side entry conduit knockouts into an easily accessible and roomy wiring compartment
- Installation made quick and easy with keyhole mounting slots and supplied wall mounting template
- NEMA 4/12 enclosure rating available when optional gasket kit is installed
- NEMA 3R enclosure meets or exceeds listing criteria including NEMA and ANSI standards for indoor and outdoor applications
- 240 x 480 V primary volt
- All welded core construction made with high quality, high permeability silicon steel laminations
- Copper or aluminum windings, with terminations brazed, welded or bolted coil
- High and low voltage lead wires or copper tabs
- ANSI 61 UL 50 gray enclosure finish
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Insulation | 130 deg C |
| Mounting Type | Wall |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=doz26KDJBF0 |
| Catalog ID | HAMC1FC50LE |
| Connection Type | Lead Wires/Tabs |
| Dimensions | 7-1/4 in H x 4-1/2 in W x 5-3/4 in D |
| Enclosure Type | NQ1-N3R - Indoor or Outdoor |
| Phase | 1 |
| Power Rating | 0.5 kVA |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 120/240 VAC |
| Type | Commercial Potted |
| Application | Shopping Centers, Schools, Sports Complexes, Commercial, Lighting, Wastewater and Light Industrial Loads |
| Standard & Approvals | UL Listed, CSA Certified, RoHS Complaint |
