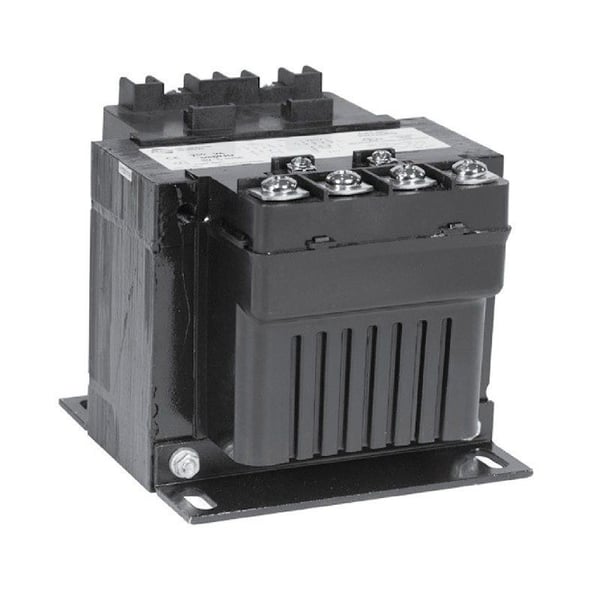

HPS Imperator® PH350MQMJ Molded Industrial Control Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 350 VA, 50/60 Hz

Selected PH350MQMJHPS Imperator® PH350MQMJ Molded Industrial Control Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 350 VA, 50/60 Hz
PH350MQMJHPS Imperator® PH350MQMJ Molded Industrial Control Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 350 VA, 50/60 Hz

Documents

Short Description

The HPS Imperator series of machine tool rated industrial control transformers are specifically designed to meet the high inrush industrial applications where electromagnetic components such as relays, solenoids and magnetic motor starters are used. The HPS Imperator’s unique terminal block design allows for the quick and easy installation of standard secondary or optional primary 13/32” x 1 1/2” midget/type CC fuse clips on every unit. This is the simplest and most inexpensive fusing installation provided on any industrial control transformer in the market today.

Features

  • Constructed with high quality silicon steel laminations that provide optimum performance and reliability
  • Encapsulated coils encased in a custom injection molded cover, protect coils and terminations from moisture, dirt and other industrial airborne contaminants
  • Mounting feet made of heavy steel and welded or bolted to the core, these mounting feet provide superior strength in a compact design
  • Combination slot/Philips #6 screw, complete with SEMS washer termination
  • Optional finger safe terminal covers available on all units
  • Terminal connection numbers molded into terminal block and correspond to nameplate and wiring diagrams, make connecting the HPS Imperator quick and simple
  • SEMS washer allows for easy connection of supply or load wires with or without terminal connectors
  • Innovative terminal block design provides for easy hook-up and installation of fuse clip
  • Custom injection molded coil cover with its unique "fin shaped" design combine superior cooling properties with a clean, bold look
  • 240 x 480, 230 x 460, 220 x 440 V primary volt
  • 120 x 240, 115 x 230, 110 x 220 V secondary volt
  • Encapsulated copper wound coils encased in a custom injection molded cover
  • Secondary fuse clips, fuse clip mounting screws and primary and secondary voltage links/jumpers supplied with transformers
  • 40 deg C maximum

Specification

Frequency Rating
50/60 Hz
Insulation
130 deg C
Maximum Amperage Rating
2.92/1.46 A
Mounting Type
Panel
Minimum Order Qty
1
Order Interval
1
Catalog ID
HAMPH350MQMJ
Connection Type
Screw
Dimensions
4.5 in L x 5.19 in W x 4.44 in H
Enclosure Type
Open
Phase
1
Power Rating
350 VA
Primary Voltage
240/480 VAC
Secondary Voltage
120/240 VAC
Temperature Rating
30 deg C
Type
Molded
Application
Automation, Panel Shops, Machines, Panel Boards, Solenoids, Control Applications and Timers
Standard & Approvals
UL Listed, cULus Listed, RoHS Complaint
