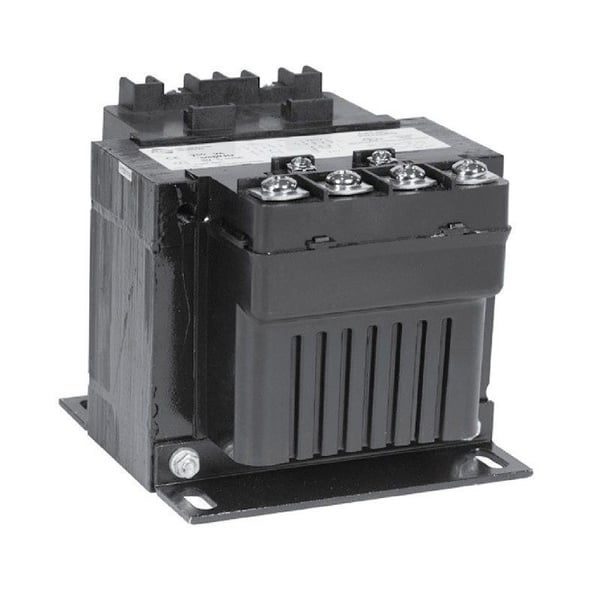

HPS Imperator® PH50MLI Molded Industrial Control Transformer, 480/240 VAC Primary, 120/25 VAC Secondary, 50 VA, 50/60 Hz, 1 Phase

Selected PH50MLIHPS Imperator® PH50MLI Molded Industrial Control Transformer, 480/240 VAC Primary, 120/25 VAC Secondary, 50 VA, 50/60 Hz, 1 Phase
PH50MLIHPS Imperator® PH50MLI Molded Industrial Control Transformer, 480/240 VAC Primary, 120/25 VAC Secondary, 50 VA, 50/60 Hz, 1 Phase

Documents

Short Description

The HPS Imperator series of machine tool rated industrial control transformers are specifically designed to meet the high inrush industrial applications where electromagnetic components such as relays, solenoids and magnetic motor starters are used. The HPS Imperator’s unique terminal block design allows for the quick and easy installation of standard secondary or optional primary 13/32” x 1 1/2” midget/type CC fuse clips on every unit. This is the simplest and most inexpensive fusing installation provided on any industrial control transformer in the market today.

Features

  • Constructed with high quality silicon steel laminations that provide optimum performance and reliability
  • Encapsulated coils encased in a custom injection molded cover, protect coils and terminations from moisture, dirt and other industrial airborne contaminants
  • Mounting feet made of heavy steel and welded or bolted to the core, these mounting feet provide superior strength in a compact design
  • Combination slot/Philips #6 screw, complete with SEMS washer termination
  • Optional finger safe terminal covers available on all units
  • Terminal connection numbers molded into terminal block and correspond to nameplate and wiring diagrams, make connecting the HPS Imperator quick and simple
  • SEMS washer allows for easy connection of supply or load wires with or without terminal connectors
  • Innovative terminal block design provides for easy hook-up and installation of fuse clip
  • Custom injection molded coil cover with its unique "fin shaped" design combine superior cooling properties with a clean, bold look
  • 480/240, 460/230/208, 440/220/200 V primary volt
  • 120/25, 115/24, 110/23 V secondary volt
  • Encapsulated copper wound coils encased in a custom injection molded cover
  • Secondary fuse clips and fuse clip mounting screws supplied standard with transformers up to and including 500VA, primary and secondary voltage links/jumpers supplied standard with transformers
  • 40 deg C maximum

Specification

Frequency Rating
50/60 Hz
Insulation
105 deg C
Mounting Type
Panel
Minimum Order Qty
1
Order Interval
1
Connection Type
Screw
Enclosure Type
Open
Phase
1
Power Rating
50 VA
Primary Voltage
480/240 VAC
Secondary Voltage
120/25 VAC
Temperature Rating
30 deg C
Type
Molded
Application
Automation, Panel Shops, Machines, Panel Boards, Solenoids, Control Applications and Timers
Standard & Approvals
UL Listed, cULus Listed, RoHS Complaint
Dimensions
3.25 in L x 4.06 in W x 3.56 in H
Catalog ID
HAMPH50MLI
Maximum Amperage Rating
0.43/2.08 A
