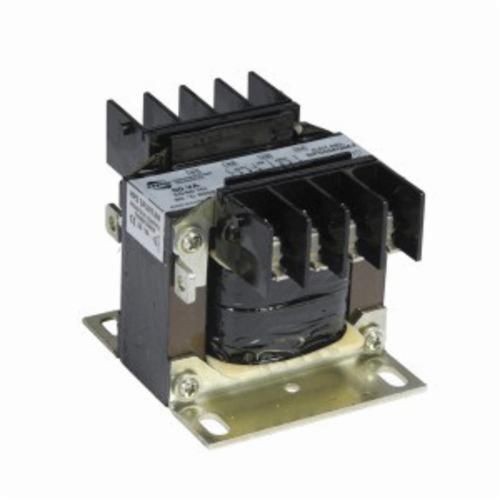

HPS Spartan® SP1500MQMJ General Purpose Industrial Control Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 1500 VA
HPS Spartan® SP1500MQMJ General Purpose Industrial Control Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 1500 VA
SKU: HAMSP1500MQMJ
Manufacturer Part Number: SP1500MQMJ
UPC: 803423098834
Documents
Short Description
Features
- All units supplied with primary and secondary voltage link/jumpers
- All terminal blocks utilize a combination slot/Phillips #6 screw with a SEMS washer
- Coil face terminations utilize a 1/4 - 20 UNC x 0.50 in slot/Phillips screw and a spring lock washer
- Superior insulating materials
- Premium packaging which features premium fluted cartons and custom molded foam inserts
- Copper wound coils with high dielectric strength insulation
- All HPS Spartan® units are supplied with trilingual installation and wiring instruction sheets
- All HPS Spartan® transformers are vacuum impregnated with polyester resin and oven cured
- Bolted core construction
- 240/480, 230/460, 220/440 V primary volt
- 120/240, 115/230, 110/220 V secondary volt
- Primary and secondary voltage links/jumpers supplied standard with all transformers
- 40 deg C maximum
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Insulation | 130 deg C |
| Maximum Amperage Rating | 12.5/6.25 A |
| Mounting Type | Panel |
| Phase | 1 |
| Power Rating | 1500 VA |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 120/240 VAC |
| Temperature Rating | 30 deg C |
| Type | General Purpose |
| Application | For HVAC, signals and alarm systems, motor control circuits, lighting and circuit isolation |
| Standard & Approvals | UL Listed, CSA Certified, CE Marked, RoHS Complaint |
| Dimensions | 5.25 in L x 6.85 in W x 4.37 in H |
| Connection Type | Screw |
| Enclosure Type | Open |
