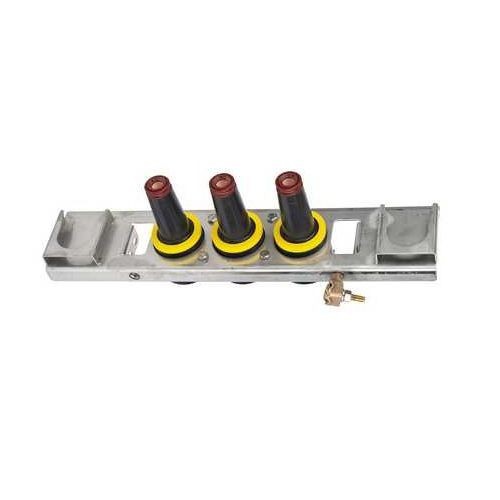

Hubbell® 215J3B 3-Position Load Break Junction With Stainless Steel Bracket, 15 kV, 200 A

Selected Hubbell® 215J3B 3-Position Load Break Junction With Stainless Steel Bracket, 15 kV, 200 A
Hubbell® 215J3B 3-Position Load Break Junction With Stainless Steel Bracket, 15 kV, 200 A

Documents

Short Description

Hubbell® junctions are used to sectionalize cables or as feed-thrus for making lateral taps. Each tap works independently of the others contained on the same unit. Adjacent taps are 3.24 in center to center. Yellow seating indicator rings provide a positive indication that the mating product is fully installed. Junctions with the corrosion-resistant stainless steel mounting bracket allow back plate mounting angles of 30, 45 or 60 deg. This bracket can be adjusted for horizontal mounting to a flat surface. Junctions can also be ordered with only U-straps for surface mounting.

Specification

Voltage Rating
15 kV
Standard & Approvals
ARRA, BAA Compliant, IEEE Standard 386
Amperage Rating
200 A
Type
3-Position
Suitable For Use With
Cables/Feed-Thru
Dimensions
20.3 in L
