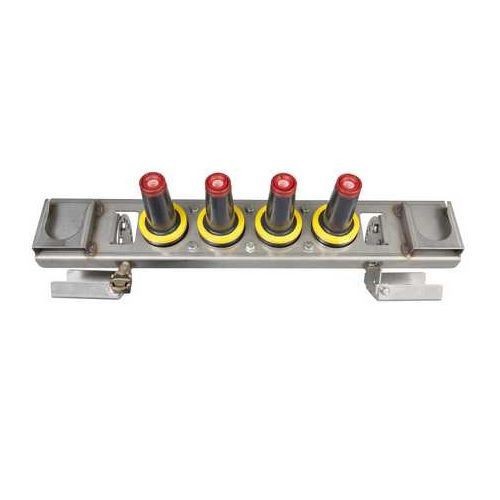

Hubbell® 215J4B 4-Position Load Break Junction With Stainless Steel Bracket, 15 kV, 200 A

Selected Hubbell® 215J4B 4-Position Load Break Junction With Stainless Steel Bracket, 15 kV, 200 A
Hubbell® 215J4B 4-Position Load Break Junction With Stainless Steel Bracket, 15 kV, 200 A

Documents

Short Description

Hubbell® junctions are used to sectionalize cables or as feed-thrus for making lateral taps. Each tap works independently of the others contained on the same unit. Adjacent taps are 3.24 in center to center. Yellow seating indicator rings provide a positive indication that the mating product is fully installed. Junctions with the corrosion-resistant stainless steel mounting bracket allow back plate mounting angles of 30, 45 or 60 deg. This bracket can be adjusted for horizontal mounting to a flat surface. Junctions can also be ordered with only U-straps for surface mounting.

Specification

Suitable For Use With
Cables/Feed-Thru
Type
4-Position
Voltage Rating
15 kV
Standard & Approvals
ARRA, BAA Compliant, IEEE Standard 386
Amperage Rating
200 A
Dimensions
23-1/2 in L
