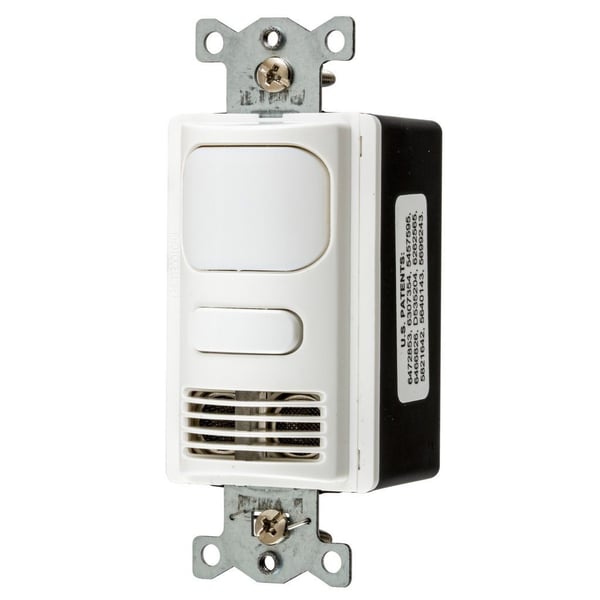

Hubbell® H-MOSS® AD2000W1 Wall Switch Sensor, 120/277 VAC, Passive Infrared/Ultrasonic Sensor, 1000 sq-ft Coverage
Hubbell® H-MOSS® AD2000W1 Wall Switch Sensor, 120/277 VAC, Passive Infrared/Ultrasonic Sensor, 1000 sq-ft Coverage
SKU: HWDAD2000W1
Manufacturer Part Number: AD2000W1
UPC: 783585413310
Documents
Features
- Dual technology sensing combines the individual advantages of passive infrared and ultrasonic detection
- No neutral required
- Built-in photocell with manual super saver mode for daylight harvesting
- Impact-resistant hard lens is standard and color matched to the switch
- Plated steel mounting strap
- Dual element pyrometer and 12-element cylindrical hard lens
- Passive infrared, red LED, ultrasonic, green LED sensing indicator
- 0 to 800 W incandescent, 0 to 1000 W 120 VAC ballast, 0 to 1800 W 277 VAC ballast load capacity
- #18 AWG stranded wire, 6 in long with 1/2 in stripped ends wire leads
- 0 to 95% non-condensing relative humidity
- Adjustable ambient light override, 10 to 500 fcd ambient light
- 0 to 100% adaptive sensitivity
Specification
| Lamp Type | LED |
|---|---|
| Material | High Impact Plastic |
| Mounting Type | Wall |
| Response Frequency | 50/60 Hz |
| Sensor Type | Passive Infrared/Ultrasonic |
| Temperature Rating | 32 to 104 deg F |
| Viewing Angle | 180 deg |
| Voltage Rating | 120/277 VAC |
| Standard & Approvals | ASHRAE 90.1, CEC Title 24 Certified, cULus Listed |
| Color | White |
| Connection Type | Wire Lead |
| Coverage | 1000 sq-ft |
| Time Delay | 4 to 30 min Adaptive |
| Power Rating | 1000/1800 W |
| Control Output | Auto/Manual On |
| Dimensions | 4.13 in L x 1.71 in W x 1.69 in H |
