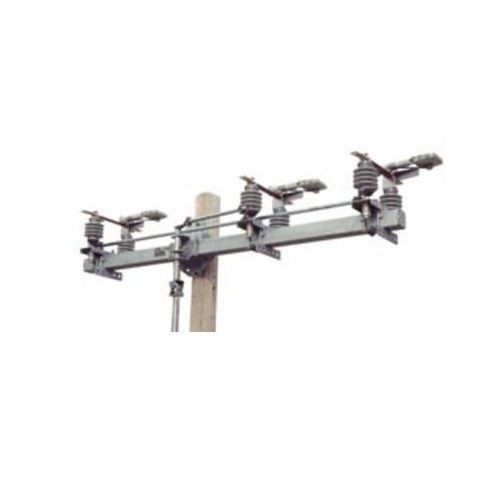

Hubbell® AR113FH Automation Ready Gang-Operated Overhead Switch, 17.1 kV, 900 A, 2-1/4 in Bolt Circle Polymer Insulator, Hot-Rolled Steel
Hubbell® AR113FH Automation Ready Gang-Operated Overhead Switch, 17.1 kV, 900 A, 2-1/4 in Bolt Circle Polymer Insulator, Hot-Rolled Steel
SKU: HPSAR113FH
Manufacturer Part Number: AR113FH
UPC: 096359242857
Short Description
Features
- Automation ready design compatible with todays D/A environment by adding a motor operator and RTU of your choice or upgrade in the future
- 900 A continuous and interruption current rating meets present and future operation requirements
- Four link overtoggle mechanism mechanical advantage reduces operating torque to the lowest level in the industry to date
- Overtoggle feature assures blades are closed and gives snap feedback to the operator
- Hook stick operation capability: Minimizes installation time, reduces possible vandalism, eliminates control adjustments
- Unitized, pre-assembled construction - Minimizes installation time and eliminates control adjustments
- Four mounting arrangements meets various utility installation requirements
- Vertical controls replaced with hook stick operating mechanism (standard controls)
- Standard interrupter
Specification
| Insulator Type | 2-1/4 in Bolt Circle Polymer |
|---|---|
| Material | Fiberglass |
| Mounting Type | Horizontal |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 900 A |
| BIL Rating | 110 kV |
| Standard & Approvals | ANSI Specified, ARRA, BAA Compliant, IEEE Standard |
| Application | Distribution Automation |
| Voltage Rating | 17.1 kV |
| Type | Automation Ready |
| Specifications | 3-ph |
| Catalog ID | HPSAR113FH |
| Base Style | Hot-Rolled Steel |
