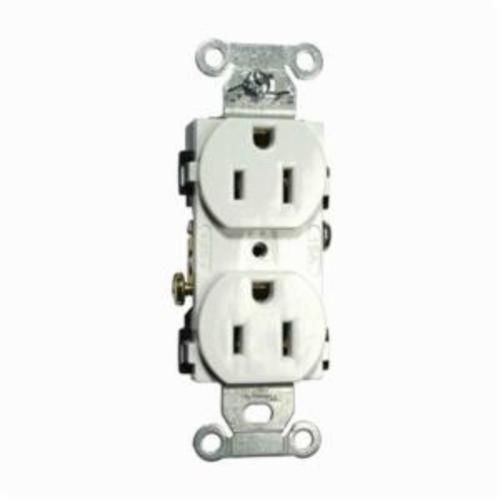

HUBBELL® Commercial Duplex Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
HUBBELL® Commercial Duplex Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
SKU: HWDBR15WHI
Manufacturer Part Number: BR15WHI
UPC: 783585127972
Features
- Grounding, traditional face shape
- Withstands 2000V minimum dielectric voltage
- No. 14 - 10 AWG copper stranded or solid conductor only terminal
- UL94 V-2 flammability
- Smooth face style
- Easy access split circuit tab
- Triple wipe contact
- Nylon base, 0.03 in brass power contacts
- Brass ground contacts
- 0.062 in nickel plated steel wire clamp
- Plated steel terminal screws
- 0.04 in galvanized steel mounting strap
- Stainless steel automatic self-grounding staple
- Galvanized steel mounting screws
- Installation ease, single tab break off ears and self-grounding staple
- Certified for current interrupting at full rated current
Specification
| Grade | Specification |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 15 A |
| Color | White |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Back and Side Wired |
| Type | Duplex |
| Voltage Rating | 125 VAC |
| Horsepower | 0.5 hp |
| Standard & Approvals | UL 498 E2186, CSA C22.2, No.42, NEMA® WD-6 Compliant |
| Dimensions | 3.3 x 1.34 x 1.1 in |
| Catalog ID | HWDBR15WHI |
| Series | Commercial |
