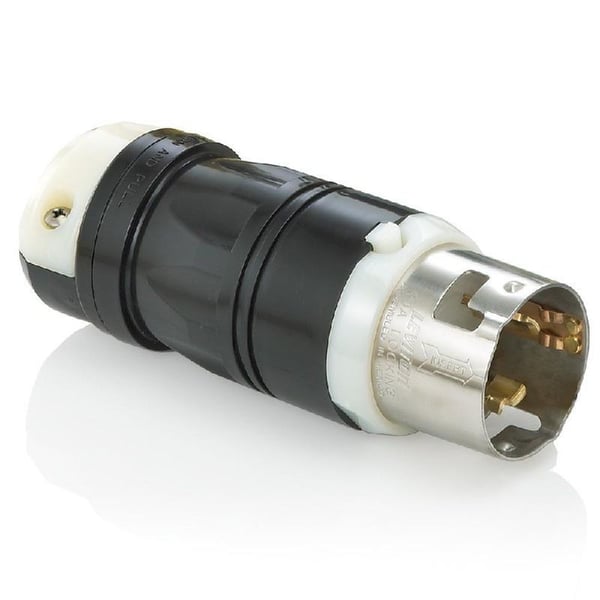

Hubbell, Twist Lock Plug, 3 Pole, 4 Wire, 50 A, 125/250 V, Black & White
Hubbell, Twist Lock Plug, 3 Pole, 4 Wire, 50 A, 125/250 V, Black & White
SKU: HWDCS6365C
Manufacturer Part Number: CS6365C
UPC: 783585827995
Features
- Glass reinforced pet blade holder, terminal retainer and cord clamp material
- Brass blade, bronze box terminal clamp
- Stainless steel terminal screw material, 302/304 stainless steel cord clamp screw and body holding screw material
- Molded in or stamped on ratings
- Withstand 2000 V minimum dielectric voltage
- Certified for current interrupting at full rated current interrupting
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150 percent of rated current at a power factor of 0.75 temperature rise
- Round portable service cords of diameters commensurate with the device rating as defined in UL standard 62, CSA c22.2 NO 49 cord accommodation
- 10 AWG min 6 AWG max terminal accommodation
- Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification
- UL 94 Vo for receptacles and inlets, Hb or better for plugs and connectors flammability
- Stainless steel safety-shroud material, neoprene seal material
- Nylon seal cup material
- Copper box terminal material
- Tough nylon housing offers better impact qualities
- Stainless steel shroud restricts mismating with the wrong device
- Heavy duty two-piece external cord clamp provides maximum strain relief
- Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
- Thermoplastic polyester interior provides heat resistance and impact strength
Specification
| Material | Nylon |
|---|---|
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Type | Grounding |
| Voltage Rating | 125/250 VAC |
| Application | Industrial |
| Standard & Approvals | UL 498 Listed, CSA C22.2 No.42 Certified |
| Amperage Rating | 50 A |
| Dimensions | 6.37 x 2.56 x 2.56 in |
| Color | Black/White |
| Cord Diameter | 0.83 to 1.125 in |
| Enclosure | IP20 |
