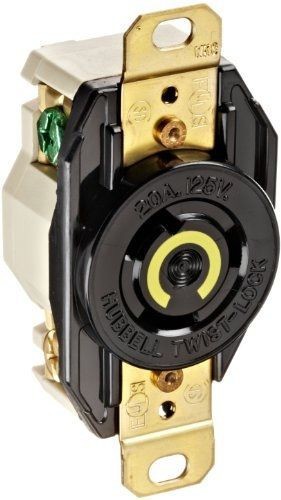

Hubbell, Twist Lock Receptacle, 2 Pole, 3 Wire, 20 A, 125 V, NEMA L5-20R, Black
Hubbell, Twist Lock Receptacle, 2 Pole, 3 Wire, 20 A, 125 V, NEMA L5-20R, Black
SKU: HWDHBL2310
Manufacturer Part Number: HBL2310
UPC: 783585235509
Features
- High impact, abuse-resistant nylon face
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- 10 - 32 brass (white finish on neutral screw when used) multi-drive terminal screw material
- 10 - 32 bronze (green) ground screw material, 0.04 in brass contact spring material, 0.04 in brass terminal clamp material
- Steel-zinc-plated mounting screw material, black nylon cover (top) material
- Nylon polyester base material
- 0.04 in brass ground contact material, 0.05 in brass bridge (mounting strap) material
- 0.04 in brass back plate material
- Brass rivet material
- Stainless steel auto ground clip material
- Molded in or stamped on ratings
- Permanently ink marked on product catalog No
- 2,000 VAC minimum dielectric voltage withstand
- Certified for current interrupting at full rated current interrupting
- Max 30 C temperature rise at full rated current after 50 cycles of overload at 150 percentage of rated current at a power factor of 0.75 temperature rise
- 14 - 8 AWG copper only terminal accommodation
- Terminals identified in accordance with UL498(x, y, z, white, green) terminal identification
- HB or better per UL94 or CSA 22.2 No. 0.6 flammability, flush mounting
Specification
| Grade | Industrial |
|---|---|
| Material | Polyester |
| NEMA Rating | NEMA L5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Voltage Rating | 125 VAC |
| Application | For heavy duty industrial applications |
| Amperage Rating | 20 A |
| Color | Black |
| Horsepower | 1 hp |
| Enclosure | NEMA 4/4X/12/IP20 |
| Dimensions | 3.28 x 1.7 x 1.23 in |
| Standard & Approvals | UL 498 Listed, Federal Specification W-C-596, CSA C22.2 No.42 Certified |
| Type | Single Flush Grounding |
