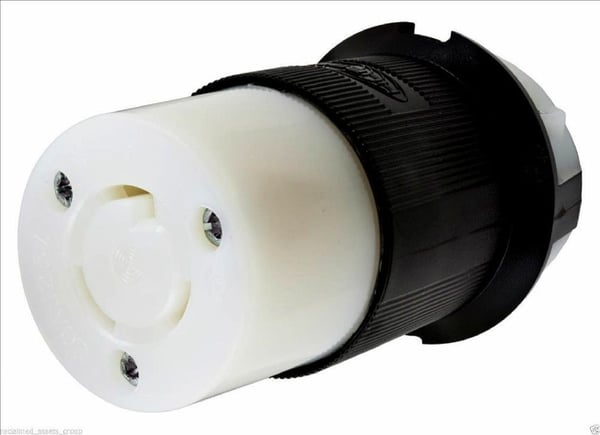

Hubbell, Twist Lock Connector, 2 Pole, 3 Wire, 20 A, 125 V, NEMA L5-20R, Black & White
Hubbell, Twist Lock Connector, 2 Pole, 3 Wire, 20 A, 125 V, NEMA L5-20R, Black & White
SKU: HWDHBL2313
Manufacturer Part Number: HBL2313
UPC: 783585037745
Features
- Clear polycarbonate terminal retainer material
- Natural (white) nylon cord clamp material
- 0.08 in (2) steel nickel plated terminal clamp material
- 10 - 32 brass (white finish on neutral screw when used) multi-drive terminal screw material
- 10 - 32 brass (green finish) multi-drive ground screw material
- Steel, zinc plated multi-drive cord clamp screw material
- Steel, zinc plated multi-drive body holding screw material
- Natural white nylon body contact carrier material
- Brass contact spring material
- Brass spring binding plate material, 0.031 in (0.8) brass ground contact material
- Molded-in or stamped on ratings, 2000 V minimum dielectric voltage withstand
- Certified for current interrupting at full rated current interrupting
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150 percentage of rated current at a power factor of 0.75 temperature rise
- Round portable service cords of diameters commensurate with the device rating as defined in UL standard 62, CSA C22.2 no. 49. cord accommodation
- 20A, 12 AWG terminal accommodation
- Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification, Hb or better per UL 94 or CSA 22.2 no. 0.6 flammability
- Ribbed nylon housing provides a secure grip and impact and chemical resistance.
- Superior cord grip design protects terminations from excess strain
- Clear, funnel shaped wire entry for ease of termination
- Integral dust shield protects wiring chamber from dust or contaminants
Specification
| Grade | Industrial/Commercial |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA L5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Color | Black/White |
| Enclosure | IP20 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Type | Grounding |
| Voltage Rating | 125 VAC |
| Horsepower | 1 hp |
| Dimensions | 2.26 x 2.26 x 3.86 in |
| Cord Diameter | 0.36 to 0.93 in |
| Catalog ID | HWDHBL2313 |
| Standard & Approvals | UL 498 Listed, Federal Specification W-C-596, CSA C22.2 No.42 Certified |
