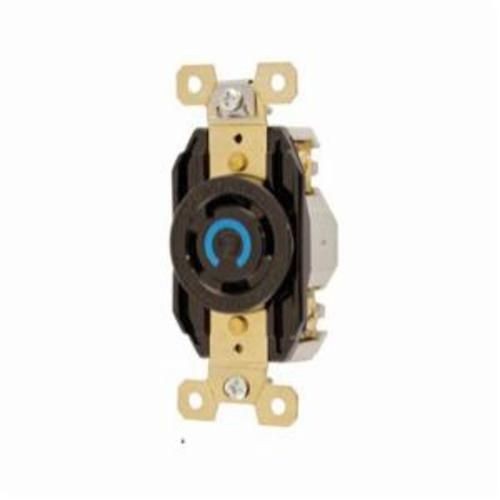

HUBBELL® Twist-Lock® HBL2750 Locking Receptacle, 120/208 VAC, 30 A, 4 Poles, 4 Wires, Black
HUBBELL® Twist-Lock® HBL2750 Locking Receptacle, 120/208 VAC, 30 A, 4 Poles, 4 Wires, Black
SKU: HWDHBL2750
Manufacturer Part Number: HBL2750
UPC: 783585236193
Documents
Features
- High impact, abuse resistant nylon face
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- 16 - 8 AWG solid or stranded copper wire terminal
- Screw mounting
- 0.04 in brass terminal clamp, contact spring and back plate
- No 10-32 bronze (white finish on neutral screw when used) terminal screw no 10-32 bronze (green) ground screw
- Steel zinc plated mounting screw black nylon cover (top), nylon polyester base brass rivet, stainless steel auto ground clip
- 0.05 in brass bridge (mounting strap)
- Dielectric voltage withstand is 2000 V minimum
- Maximum 30 deg c temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
- Made of nylon polyester
Specification
| Material | Polyester |
|---|---|
| NEMA Rating | NEMA L18-20R |
| Number Of Poles | 4 |
| Number of Wires | 4 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 30 A |
| Catalog ID | HWDHBL2750 |
| Color | Black |
| Dimensions | 3.28 x 1.7 x 1.31 in |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Voltage Rating | 120/208Y VAC |
| Application | Heavy Duty Industrial Application |
| Standard & Approvals | UL File No. 498 Listed, CSA File No. C22.2 No. 0.6 Certified |
| Horsepower | 3 hp |
