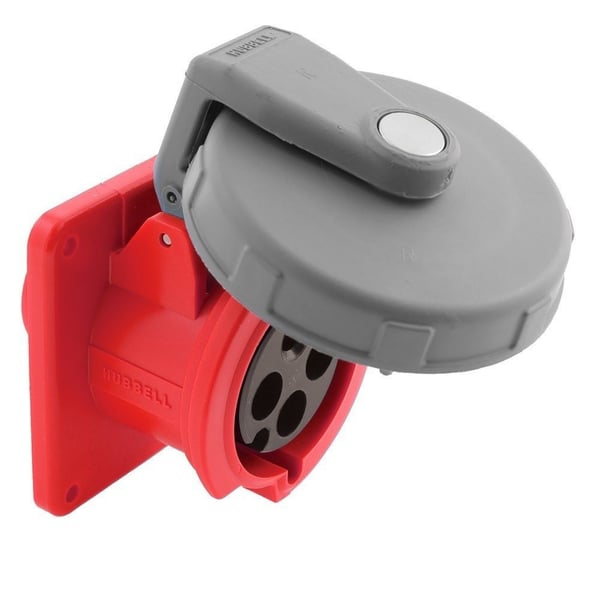

HUBBELL® HBL430R7W Watertight Pin and Sleeve Receptacle, 480 VAC, 30 A, 3 Poles, 4 Wires, Red
HUBBELL® HBL430R7W Watertight Pin and Sleeve Receptacle, 480 VAC, 30 A, 3 Poles, 4 Wires, Red
SKU: HWDHBL430R7W
Manufacturer Part Number: HBL430R7W
UPC: 783585404639
Features
- No 12 - 8 AWG copper wire terminal
- Zytel 101 nylon housing and mounting flange, 300 series stainless steel mounting, terminal and assembly screws type 17-1 stainless steel arm spring, solid neoprene gaskets, rynite SST35 cover arm and cover, nickel plated brass cover screw/rivet material
- Polycarbonate rotating sealing disc, brass ground/phase sleeve, beryllium copper multi-contact insert with silver plating pin/sleeve spring, high-impact thermoset contact carrier and retainer material
- Dielectric withstand voltage of 3000 VAC minimum
- 600V rms maximum working voltage
- Maximum 30 deg c temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- 5000 connect and disconnect cycles with load for 16A and 20A, 1000 cycles with load and 1000 cycles without load for 30A, 32A, 60A and 63A, and 250 cycles with load and 250 cycles without load for 100A and 125A endurance
- Watertight per IEC 60309-1 moisture resistance
Specification
| Material | Nylon |
|---|---|
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Dimensions | 3.75 in W x 3.09 in D x 4.27 in H |
| Color | Red |
| Amperage Rating | 30 A |
| Standard & Approvals | UL File E146032 Listed, E146033, UL Standard UL1682 and UL 1686C2, CSA Certified File LR280C, LR285C, CSA Standard C22.2 No. 182.2, UL Classified to IEC 309-1 |
| Application | High Ampacity Watertight Connections |
| Voltage Rating | 480 VAC |
| Type | Watertight |
