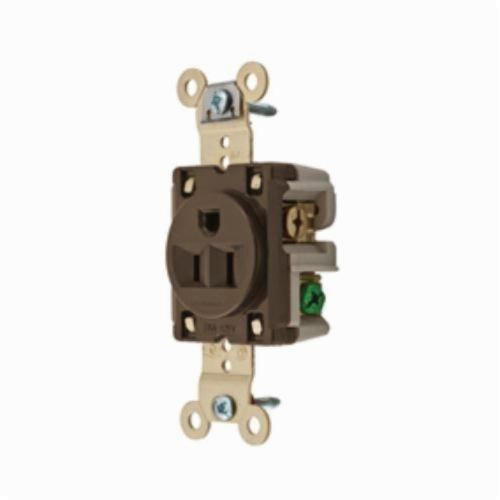

HUBBELL® HBL5261 Single Heavy Duty Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
HUBBELL® HBL5261 Single Heavy Duty Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
SKU: HWDHBL5261
Manufacturer Part Number: HBL5261
UPC: 783585013855
Features
- Grounding, traditional face shape
- Withstands 2000V minimum dielectric voltage
- No. 14 - 10 AWG copper stranded or solid conductor only terminal
- UL94 V2 flammability
- Finder groove face style
- One-piece brass integral ground strap
- Unique bypass contact design
- PBT base, 0.037 in brass power contacts
- Brass ground contacts
- 0.05 in brass mounting strap
- Certified for current interrupting at full rated current
- Stainless steel automatic self-grounding staple
- Zinc plated steel mounting screws
Specification
| Grade | Specification |
|---|---|
| Material | Reinforced PET |
| NEMA Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 15 A |
| Catalog ID | HWDHBL5261 |
| Color | Brown |
| Dimensions | 3.28 x 1.63 x 1.19 in |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Back and Side Wired |
| Type | Single Heavy Duty |
| Voltage Rating | 125 VAC |
| Standard & Approvals | UL 498 E2186, CSA 22.2, No.42 File 285, NEMA® WD-6 Compliant |
| Horsepower | 0.5 hp |
