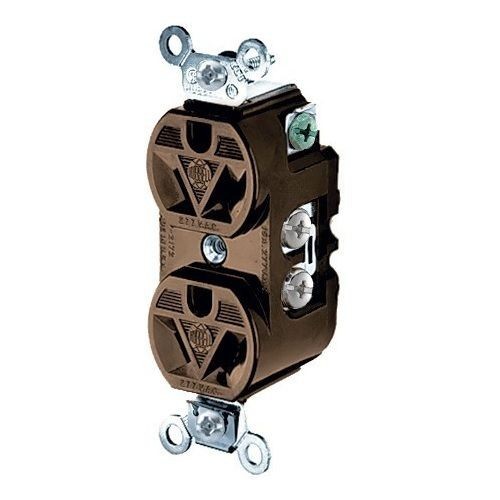

HUBBELL® HBL5302 Duplex Grounding Heavy Duty Straight Blade Receptacle, 277 VAC, 15 A, 2 Poles, 3 Wires, Brown
HUBBELL® HBL5302 Duplex Grounding Heavy Duty Straight Blade Receptacle, 277 VAC, 15 A, 2 Poles, 3 Wires, Brown
SKU: HWDHBL5302
Manufacturer Part Number: HBL5302
UPC: 783585014241
Features
- Finder groove face style
- No 8-32 brass nickel plated for neutral terminal screw material
- No 8-32 brass, multiple drive (green) ground screw material
- Phenolic base material
- 0.031 in phosphor bronze power contacts material
- 0.05 in steel -plated mounting strap material
- Withstands 2000 V minimum dielectric voltage
- No 14 - 10 AWG copper stranded or solid conductor only
- Finder groove face
- Auto ground clip
- 3-wire grounding
Specification
| Grade | Compact Specification |
|---|---|
| Material | Phenolic |
| NEMA Rating | NEMA 7-15R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Back and Side Wire |
| Type | Duplex Grounding Heavy Duty |
| Voltage Rating | 277 VAC |
| Standard & Approvals | UL 498 File No. E2186, CSA 22.2 No 42 File No. 285, NEMA WD-6 |
| Amperage Rating | 15 A |
| Dimensions | 3.28 x 1.33 x 1.19 in |
| Color | Brown |
| Horsepower | 2 hp |
