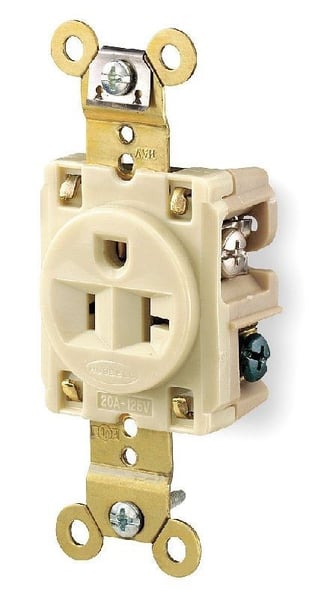

Hubbell, Straight Blade Receptacle, Single, 2 Pole, 3 Wire, 20 A, 125 V, Ivory
Hubbell, Straight Blade Receptacle, Single, 2 Pole, 3 Wire, 20 A, 125 V, Ivory
SKU: HWDHBL5361I
Manufacturer Part Number: HBL5361I
UPC: 783585013916
Documents
Features
- Finder groove face style
- No 8-32 brass nickel plated for neutral terminal screw material
- No 8-32 brass, multiple drive (green) ground screw material
- Reinforced pet base material
- 0.032 in brass power contacts material
- 0.05 in brass mounting strap material
- Withstands 2000 V minimum dielectric voltage
- No 14 - 10 AWG copper stranded or solid conductor only
- One-piece brass integral ground strap
- Unique bypass contact design
- 3-wire grounding
Specification
| Grade | Specification |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Color | Ivory |
| Dimensions | 3.28 x 1.63 x 1.19 in |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Back and Side Wire |
| Voltage Rating | 125 VAC |
| Horsepower | 1 hp |
| Catalog ID | HWDHBL5361I |
| Standard & Approvals | UL 498 File No. E2186, CSA 22.2 No 42 File No. 285, NEMA WD-6 |
| Type | Single Grounding Heavy Duty |
