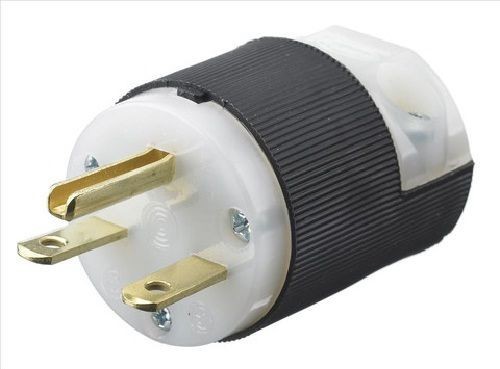

Hubbell, Straight Blade Plug, 250 V, 15 A, NEMA 6-15P, Black & White, 2 Pole, 3 Wire
Hubbell, Straight Blade Plug, 250 V, 15 A, NEMA 6-15P, Black & White, 2 Pole, 3 Wire
SKU: HWDHBL5666C
Manufacturer Part Number: HBL5666C
UPC: 783585175607
Features
- Ribbed nylon housing is impact and chemical resistant
- VARI-SIZE adjustable cord clamp
- Fast lead assembly screws
- Beveled housing prevents snagging
- Nylon-natural blade holder material
- Polycarbonate-clear retainer material
- Nylon-natural cord clamp material
- 0.06 in brass contact blades material
- 0.04 in copper alloy ground contact blade material
- NO 8 - 32 brass /nickel plated for neutral terminal screw material
- NO 8 - 32 brass, multiple drive (green) ground screw material
- Withstands 2000V minimum dielectric voltage
- Certified for current interrupting at full rated current interrupting
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150 percent of rated current at a power factor of 75 percent temperature rise
- Terminals identified in accordance with UL498 (brass, white, green) terminal identification
- NO 18 - 10 AWG copper stranded or solid conductor only terminal accommodation
- Ratings are a permanent part of the device product identification
- UL 94 Hb or better flammability
Specification
| Grade | Industrial/Commercial |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA 6-15P |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Type | Male |
| Voltage Rating | 250 VAC |
| Application | Commercial and Industrial |
| Standard & Approvals | UL 498 File No. E1706, CSA C22.2 No. 42 File No. 280, NEMA WD-6 Compliant |
| Amperage Rating | 15 A |
| Color | Black |
| Cord Diameter | 0.23 to 0.72 in |
| Enclosure | IP20 |
| Horsepower | 1.5 hp |
| Dimensions | 1.97 x 1.53 x 1.53 in |
