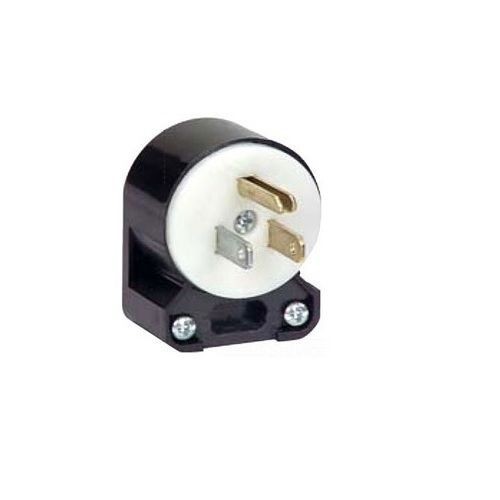

HUBBELL® Insulgrip® Angle Style Standard Sized Straight Blade Plug, 250 VAC, 15 A, 2 Poles, 3 Wires, Black/White

Selected HBL5666CAHUBBELL® Insulgrip® Angle Style Standard Sized Straight Blade Plug, 250 VAC, 15 A, 2 Poles, 3 Wires, Black/White
HBL5666CAHUBBELL® Insulgrip® Angle Style Standard Sized Straight Blade Plug, 250 VAC, 15 A, 2 Poles, 3 Wires, Black/White

Documents

Short Description

For more than 100 years, the Hubbell name has been synonymous with innovation. as a pioneer in the development of new technologies, Hubbell wiring device has always strived to improve performance safety, and functionality across our entire product line many Hubbell innovations have become the industry standard for protecting people, increasing value and extending product life cycle for maximum sustainability. Insulgrip is yet another example of a Hubbell innovation that has become the industry standard. Insulgrip products are synonymous with Hubbell’s ongoing commitment to discovering ways to make products safer and Last longer. By encasing wiring devices in tough nylon housings, Insulgrip devices ensure high impact, heat, and chemical resistance While insulating current carrying components from the user for maximum safety. Insulgrip’s cord gripping design clamps conductors, not just the cable jacket, making it the industry’s most powerful cord grip with superior strain relief. Each Insulgrip device is manufactured with roomy, separate wiring chambers to insulate conductors and an individually molded face to keep out dust and debris that can cause contamination over time.

Features

  • Corrosion resistant
  • Grounding plug
  • Cord mounted
  • No 18 - 10 AWG copper stranded or solid conductor only
  • Withstands 2000V minimum dielectric voltage
  • Certified for current interrupting at full rated current
  • Max 30 deg c temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
  • Nylon blade holder and cord clamp, polycarbonate retainer, brass contact blade and ground screw copper alloy ground contact blade, nickel plated brass terminal screw
  • Individually molded face for each blade configuration keeps debris out of plug interior
  • Roomy wiring chamber provides ample space for wiring
  • Individual wiring terminals completely enclosed in their own separate chambers
  • Powerful, offsetting cord grips clamp on individual conductors and outer cord jacket to prevent strain on terminals
  • Ribbed nylon housing is impact and chemical resistant
  • Beveled housing prevents snagging when dragged across uneven surfaces
  • Integral VARI-SIZE® insert adjusts to a wide range of cord sizes: 0.23 - 0.72 in
  • VARI-SIZE® pointer Set to "smaller than gauge" position
  • Multiple drive screws provide screwdriver versatility
  • Powerful offsetting cord grips clamp on individual conductors and outer cord jacket to prevent strain on terminations
  • Catalog number is visible on the device while-in use for easy identification
  • Transparent angled wiring entrance holes permit "straight in" conductor insertion

Specification

Material
Nylon
NEMA Rating
NEMA 6-15P
Number Of Poles
2
Number of Wires
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
15 A
Catalog ID
HWDHBL5666CA
Color
Black/White
Cord Diameter
0.325 to 0.655 in
Dimensions
2.11 x 1.53 x 1.22 in
Enclosure
IP20
Temperature Rating
-40 to 75 deg C
Terminal Type
Screw
Type
Angle Style Standard Sized
Voltage Rating
250 VAC
Application
Industrial, Food Processing, Waste Management, Healthcare, Data Centers and Construction
Standard & Approvals
UL 498 File No. E1706, C22.2 No. 42 File No. 280, NEMA WD-6 Compliant
Horsepower
1.5 hp
