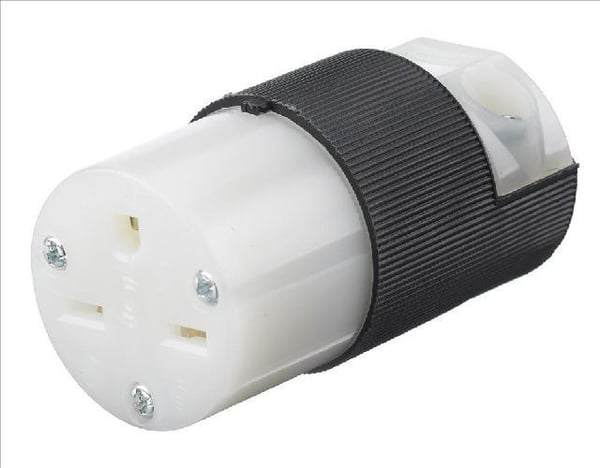

Hubbell, Straight Blade Connector, 2 Pole, 3 Wire, 15 A, 250 V, Black/White, NEMA 6-15P
Hubbell, Straight Blade Connector, 2 Pole, 3 Wire, 15 A, 250 V, Black/White, NEMA 6-15P
SKU: HWDHBL5669C
Manufacturer Part Number: HBL5669C
UPC: 783585175805
Features
- Individual wiring terminals completely enclosed
- Powerful, offsetting cord grips clamp on individual conductors
- Fast lead assembly screws
- Beveled housing prevents snagging
- Polycarbonate-clear retainer material
- Nylon-natural cord clamp material
- No. 8 - 32 brass, multiple drive terminal screw material
- No. 8 - 32 brass, multiple drive (green) ground screw material
- Nylon-natural contact holder material
- 0.04 in copper alloy power contacts material
- Withstands 2000 v minimum dielectric voltage
- Certified for current interrupting at full rated current
- Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150 percent of rated current at a power factor of 75 percent temperature rise
- Terminals identified in accordance with UL498(brass, white, green)
- No. 18 - 10 AWG copper stranded conductor terminal accommodation
- Ratings are a permanent part of the device
- UL94 hb or better flammability
- Industrial/commercial grade
Specification
| Grade | Industrial |
|---|---|
| Material | Nylon |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Back Wired |
| Voltage Rating | 250 VAC |
| Standard & Approvals | UL 498 E1706, CSA C22.2 No.42 28, NEMA® WD-6 Compliant |
| Amperage Rating | 15 A |
| Color | Black |
| Cord Diameter | 0.23 to 0.72 in |
| Enclosure | IP20 |
| Horsepower | 2 hp |
| Dimensions | 2.78 x 1.53 x 1.53 in |
| NEMA Rating | NEMA 6-15R |
