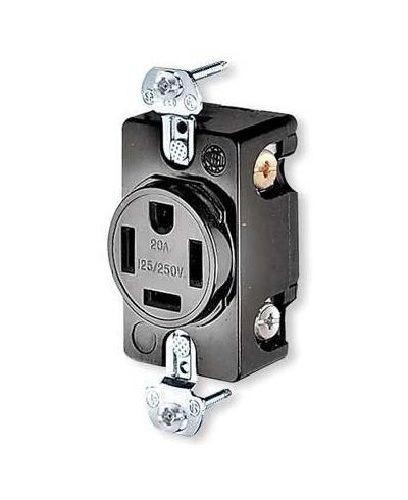

Hubbell, Straight Blade Receptacle, Single, 3 Pole, 4 Wire, 20 A, 125/250 V, Black
Hubbell, Straight Blade Receptacle, Single, 3 Pole, 4 Wire, 20 A, 125/250 V, Black
SKU: HWDHBL8410
Manufacturer Part Number: HBL8410
UPC: 783585015705
Documents
Features
- Grounding, traditional face shape
- Withstands 2000V minimum dielectric voltage
- No. 14 - 10 AWG copper stranded or solid conductor only terminal
- UL94 V0 flammability
- Finder groove face style
- Deep body design
- Impact resistant
- PBT base, brass contacts
- Steel mounting plate
- Brass terminal screws
- Certified for current interrupting at full rated current
- Nickel plated steel terminal clamp
- Plated steel mounting screws
- Brass ground contact assembly
Specification
| Grade | Specification |
|---|---|
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Catalog ID | HWDHBL8410 |
| Color | Black |
| Dimensions | 2.44 x 1.5 x 1.24 in |
| Enclosure | IP20 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Back and Side Wired |
| Type | Single |
| Voltage Rating | 125/250 VAC |
| Standard & Approvals | UL 498 E2186, CSA C22.2 No.42 File 280C, NEMA® WD-6 Compliant |
| Horsepower | 2 hp |
| NEMA Rating | NEMA 14-20R |
| Material | Reinforced PET |
