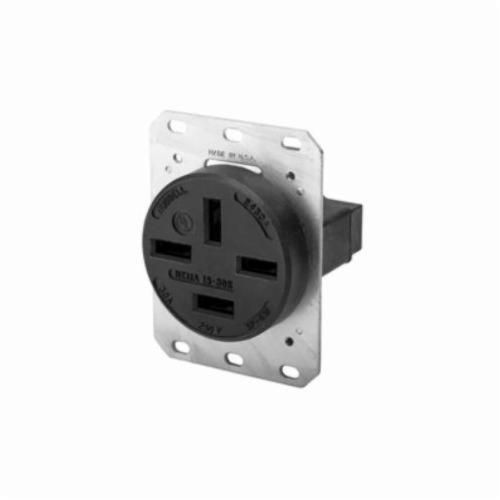

HUBBELL® HBL8430A Single Heavy Duty Straight Blade Receptacle, 250 VAC, 30 A, 4 Poles, 4 Wires, Black
HUBBELL® HBL8430A Single Heavy Duty Straight Blade Receptacle, 250 VAC, 30 A, 4 Poles, 4 Wires, Black
SKU: HWDHBL8430A
Manufacturer Part Number: HBL8430A
UPC: 783585015149
Features
- Grounding, traditional face shape
- Withstands 2000V minimum dielectric voltage
- No. 12 - 6 AWG copper stranded or solid conductor only terminal
- UL94 V0 flammability
- Finder groove face style
- Sequenced contacts assure protection
- Catalog number, ratings and certifications molded in face
- One piece design power and ground contacts
- Brass contacts
- Brass ground shunt
- Certified for current interrupting at full rated current
- 0.062 in pre-plated steel mounting plate
- Copper box terminals
- Glass reinforced PET material
Specification
| Grade | Specification |
|---|---|
| Material | Reinforced PET |
| NEMA Rating | NEMA 15-30R |
| Number Of Poles | 4 |
| Number of Wires | 4 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 30 A |
| Catalog ID | HWDHBL8430A |
| Color | Black |
| Dimensions | 2.75 in W x 2.44 in D x 3.69 in H |
| Enclosure | IP20 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Back and Side Wired |
| Type | Single Heavy Duty |
| Voltage Rating | 250 VAC |
| Standard & Approvals | UL E2186, CSA Certified, NEMA® WD-6 Compliant |
| Horsepower | 3 hp |
