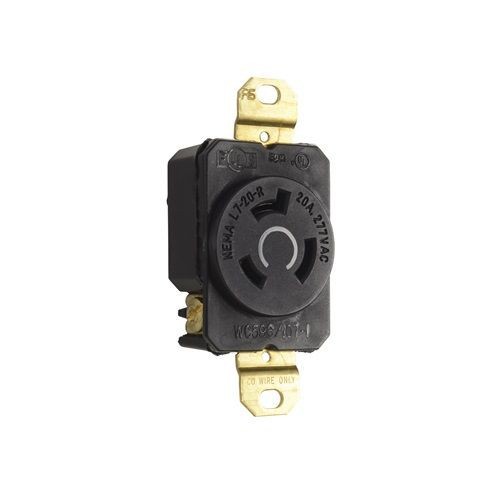

Hubbell® Hubbell-Pro™ L720R Locking Receptacle, 277 VAC, 20 A, 2 Poles, 3 Wires, Black

Selected L720RHubbell® Hubbell-Pro™ L720R Locking Receptacle, 277 VAC, 20 A, 2 Poles, 3 Wires, Black
L720RHubbell® Hubbell-Pro™ L720R Locking Receptacle, 277 VAC, 20 A, 2 Poles, 3 Wires, Black

Documents

Short Description

Hubbell-Pro locking devices provide a safe disconnect solution between an equipment load and a power source. These devices incorporate a locking interface that is engaged and disengaged simply by rotating the device assuring a safe and reliable electrical connection.

Features

  • Capable of withstanding a fault level of 1000 A circuit, per current interrupting
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles overload at 150% rated current for either AC or DC applications per
  • Minimum 4.8 times rated current for 100 cycles overload
  • 14 to 8 AWG solid or stranded copper wire terminal accommodation
  • Ratings and NEMA identification are permanently marked on device
  • Withstands 3000 VAC per UL498 dielectric voltage
  • 600 VAC/250 VDC maximum working voltage
  • Nylon construction, visible NEMA ratings, nickel-plated receptacle strap
  • High-impact resistant chemical-resistant nylon face
  • Rivetless copper alloy contacts/blade material
  • Nickel plated steel mounting yoke

Specification

Material
Thermoplastic
Number Of Poles
2
Number of Wires
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
20 A
Color
Black
Temperature Rating
-40 to 85 deg C
Voltage Rating
277 VAC
Standard & Approvals
UL 94 V2, CSA Certified
NEMA Rating
NEMA L7-20R
Catalog ID
HWDL720R
