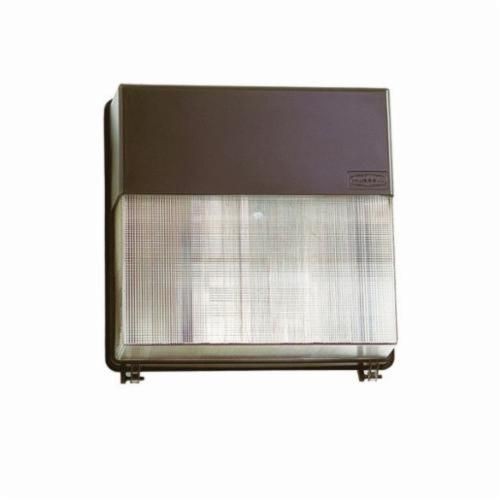

Hubbell® Outdoor Lighting PVL3-150S-18-BZ-L NRG® 300B Perimeter/Vertical Lamp Position Polycarbonate Refractor Wallpack, (1) High Pressure Sodium Lamp, 150 W Fixture, 120/220/240/277 VAC, Dark Bronze Powder Painted Housing
Hubbell® Outdoor Lighting PVL3-150S-18-BZ-L NRG® 300B Perimeter/Vertical Lamp Position Polycarbonate Refractor Wallpack, (1) High Pressure Sodium Lamp, 150 W Fixture, 120/220/240/277 VAC, Dark Bronze Powder Painted Housing
SKU: HUBPVL3-150S-18-BZ-L
Manufacturer Part Number: PVL3-150S-18-BZ-L
UPC: 785988005963
Features
- One-piece polycarbonate front with high performance prismatic optics
- Secures to housing gasket with twin Hubbell Gard® captive fasteners
- Die cast aluminum housing allows firm mounting over recessed junction boxes or on flat surfaces for 1/2 in surface conduit
- Casting dissipates ballast heat for long life
- Specular aluminum reflector with kicker panels drive maximum lamp lumens to the refractor prisms
- Vertical medium base lamp with these optics provide six-to-one spacing-to-mounting height ratio for maximum spacing or better uniformity
- Vertical lamp increases both lamp life and output
- Dark bronze powder paint finish standard on housing, front is painted inside the polycarbonate for lasting appearance
- AL-HPF pulse start ballast
Specification
| Housing Finish | Dark Bronze |
|---|---|
| Housing Material | Aluminum |
| Lamp Base | Medium |
| Lamp Type | High Pressure Sodium |
| Mounting Type | Wall |
| Number of Lamps | 1 |
| Type | Perimeter |
| Voltage Rating | 120/220/240/277 VAC |
| Application | Commercial, Architectural Exterior Wall and Area Lighting Parking Lots, Office Buildings, Stores, Shopping Centers, Fast Food Restaurants, Banks, Warehouses, and Parking Garages |
| Standard & Approvals | UL Listed, CSA Certified, RoHS Compliant |
| Dimensions | 14-7/8 in L x 8 in W x 15 in H |
| Ballast Type | Pulse Start |
| Fixture Wattage | 150 W |
