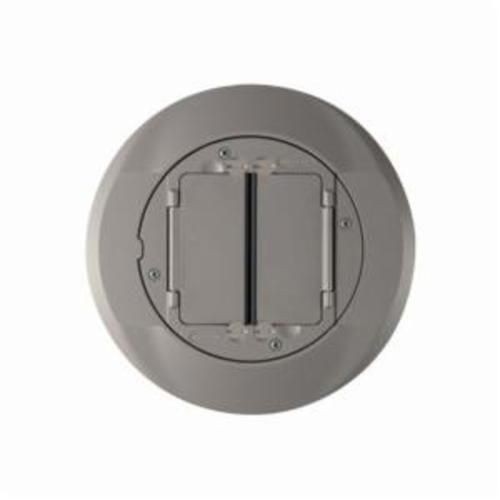

HUBBELL® SystemOne™ S1CFCGY Universal Carpet Flange and Cover Assembly, 8 in Dia, 7/16 in W, Cast Aluminum

Selected S1CFCGYHUBBELL® SystemOne™ S1CFCGY Universal Carpet Flange and Cover Assembly, 8 in Dia, 7/16 in W, Cast Aluminum
S1CFCGYHUBBELL® SystemOne™ S1CFCGY Universal Carpet Flange and Cover Assembly, 8 in Dia, 7/16 in W, Cast Aluminum

Documents

Short Description

Hubbell SystemOne is an innovative system that provides consumers with the flexibility to create personal solutions for the most demanding multi service applications for both flush in-floor boxes and fire rated poke-throughs. Hubbell SystemOne features a unique universal cover assembly and a wide variety of application sub-plates that install on both Hubbell flush floor boxes and fire rated poke-throughs. Now, whatever the application, Hubbell SystemOne delivers a consistent, aesthetic and functional solution for applications "in-the-floor" or "through-the-floor" for power, voice, data, and AV requirements.

Features

  • Oversized hinged doors rotate 180 deg flush with carpet flange or tile
  • Carpet flange features raised hinged door supports
  • Over-molded access doors prevent dirt, and debris from entering power and communication compartments
  • Security screws allow each door to be opened and secured independently
  • Universal carpet or tile flange can be used for Hubbell SystemOne metal and non-metallic floor box as well as SystemOne fire rated poke-throughs
  • Features SCRUBSHIELD™ technology that exceeds UL514A and UL514C scrub water exclusion requirements
  • Cast aluminum construction available in durable black, gray, brass, aluminum and ivory powder coat finishes
  • 4 in core hole in concrete floor
  • Fabricated
  • Provides consistent look and maximum functionality throughout the installed life

Specification

Material
Cast Aluminum
Mounting Type
Concrete Floor
Number of Gangs
2
Shape
Round
Type
Universal
Width
0.4375 in
Application
For applications in-the-floor or through-the-floor for power, voice, data, and AV requirements
Standard & Approvals
UL Listed, CSA Certified
Color
Gray
Diameter
8 in
Finish
Powder Coated
