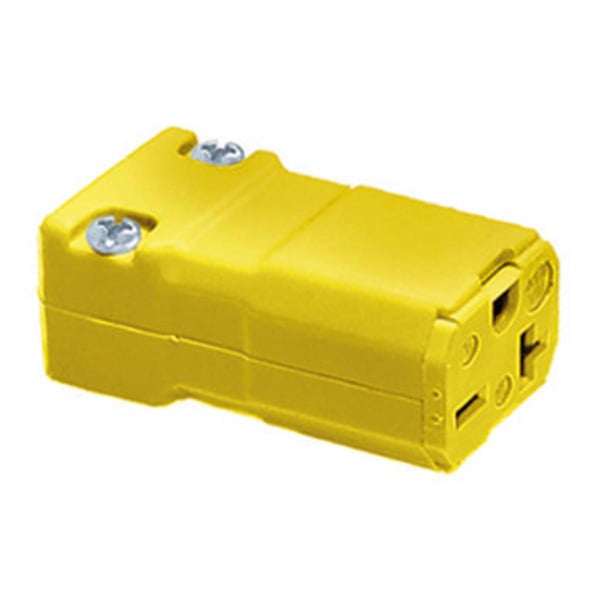

Hubbell Wiring Device-Kellems Valise® HBL5469VY Female Grounding Insulated Cord Mount Straight Blade Connector, 250 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Hubbell Wiring Device-Kellems Valise® HBL5469VY Female Grounding Insulated Cord Mount Straight Blade Connector, 250 VAC, 20 A, 2 Poles, 3 Wires, Yellow
SKU: HWDHBL5469VY
Manufacturer Part Number: HBL5469VY
UPC: 783585013190
Features
- Hinged one piece body design for easy assembly
- Powerful, offsetting cord grips clamp on individual conductors
- Assembly screws are captive and will not fall out while wiring
Specification
| Voltage Rating | 250 VAC |
|---|---|
| Material | Nylon |
| Amperage Rating | 20 A |
| Horsepower | 2 hp |
| Number Of Poles | 2 |
| Color | Yellow |
| Number of Wires | 3 |
| NEMA Rating | 6-20R |
| Terminal Type | Screw |
| Temperature Rating | -40 to 75 deg C |
| Enclosure | IP20 |
| Cord Diameter | 0.22 to 0.66 in |
| Grade | Commercial/Industrial |
| Type | Female Grounding Insulated Cord Mount |
| Dimensions | 2.38 x 1.25 x 0.88 in |
