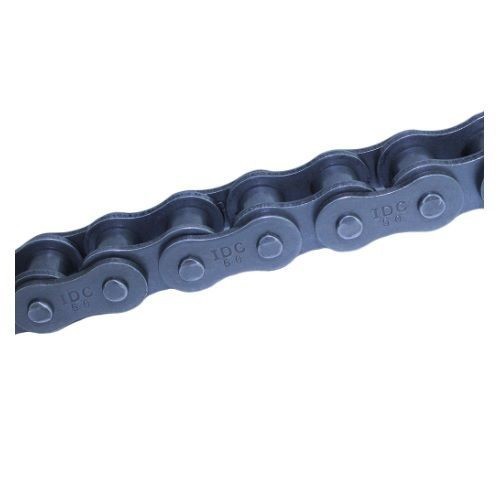

IDC Select® 40-1R Riveted Roller Chain, Carbon Steel ANSI Standard, 10 ft.
IDC Select® 40-1R Riveted Roller Chain, Carbon Steel ANSI Standard, 10 ft.
SKU: I-C40-1R
Manufacturer Part Number: 40-1R
UPC: 900000075827
Specification
| Material | Steel |
|---|---|
| Number of Strands | 1 |
| Overall Length | 10 ft |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | I-C40-1R |
| Pin Diameter | .1559 in |
| Pin Length | .654 in - .701 in |
| Pitch | .5 in |
| Plate Height | .472 in |
| Plate Thickness | .059 in |
| Roller Diameter | .313 in |
| Roller Width | .309 in |
| Tensile Strength | 3,978 lb |
| Type | Riveted Roller Chain |
