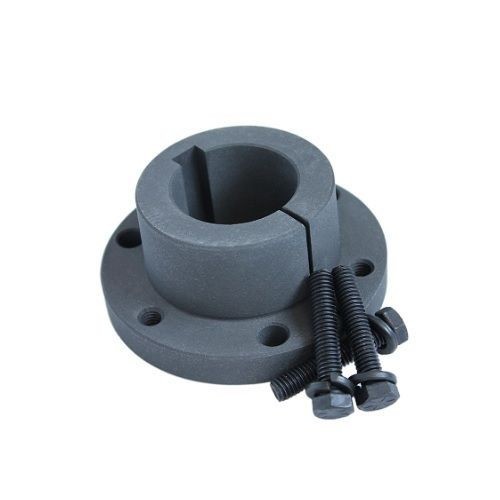

IDC Select® H-1-1/2 QD Bushing, H Series Bushing, 1.5 in (1/2 in) Bore Diameter, 2 Set Screws
IDC Select® H-1-1/2 QD Bushing, H Series Bushing, 1.5 in (1/2 in) Bore Diameter, 2 Set Screws
SKU: I-CH-1-1/2
Manufacturer Part Number: H-1-1/2
UPC: 900000115141
Documents
Specification
| Keyway Size | 3/8 x 1/16 in |
|---|---|
| Number of Bolt Holes | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Bolt Circle Diameter | 2 in |
| Bore Diameter | 1.5 in (1/2 in) |
| Catalog ID | I-CH-1-1/2 |
| Flange Diameter | 2.5 in (2 1/2 in) |
| Flange Thickness | .25 in (1/4 in) |
| Screw Size | 1/4 x 3/4 in |
| Series | H |
| Torque Rating | 95 lb/in |
| Type | QD Bushing |
