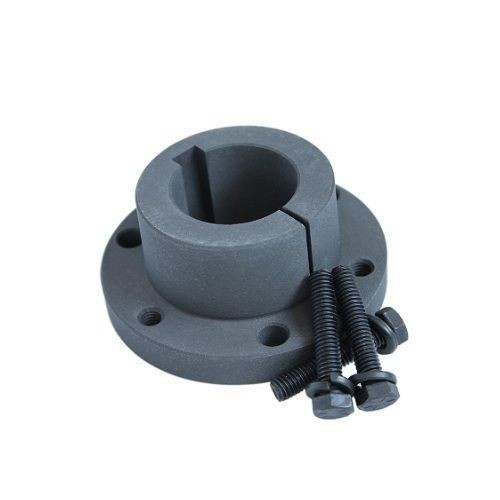

IDC Select® H-1/2 QD Bushing, H Series Bushing, .5 in (1/2 in) Bore Diameter, 2 Set Screws
IDC Select® H-1/2 QD Bushing, H Series Bushing, .5 in (1/2 in) Bore Diameter, 2 Set Screws
SKU: I-CH-1/2
Manufacturer Part Number: H-1/2
UPC: 900000115219
Specification
| Number of Bolt Holes | 2 |
|---|---|
| Screw Size | 1/4 x 3/4 in |
| Series | H |
| Type | QD Bushing |
| Bolt Circle Diameter | 2 in |
| Bore Diameter | .5 in (1/2 in) |
| Flange Diameter | 2.5 in (2 1/2 in) |
| Flange Thickness | .25 in (1/4 in) |
