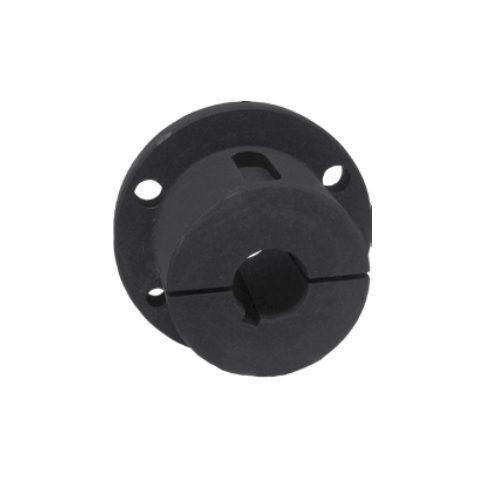

IDC Select® Q1-2-3/16 Double Split Taper Bushing, Double Split Barrel Design, 2.1875 in (2 3/16 in) Bore Diameter, 2.875 in (2 7/8 in) Hub Diameter, 3 Set Screws
IDC Select® Q1-2-3/16 Double Split Taper Bushing, Double Split Barrel Design, 2.1875 in (2 3/16 in) Bore Diameter, 2.875 in (2 7/8 in) Hub Diameter, 3 Set Screws
SKU: I-CQ1-2-3/16
Manufacturer Part Number: Q1-2-3/16
UPC: 900000126253
Documents
Specification
| Hub Diameter | 2.875 in (2 7/8 in) |
|---|---|
| Number of Bolt Holes | 3 |
| Overall Length | 2.5 in (2 1/2 in) |
| Screw Size | 3/8 x 1 1/4 |
| Series | Q1 |
| Type | Double Split Taper Bushing |
| Bore Diameter | 2.1875 in (2 3/16 in) |
| Flange Diameter | 4.125 in (4 1/8 in) |
| Flange Thickness | .5312 in (17/32 in) |
