IDC Select® IDC BK036-1-1/8 Light Duty Type 2 Single Groove Sheave With 1/4 x 1/8 in Keyway and Setscrew, Bored to Size Bore, 1-1/8 in Dia Bore, 3-3/4 in OD, 3.4 in Dia Pitch, 7/8 in W Face

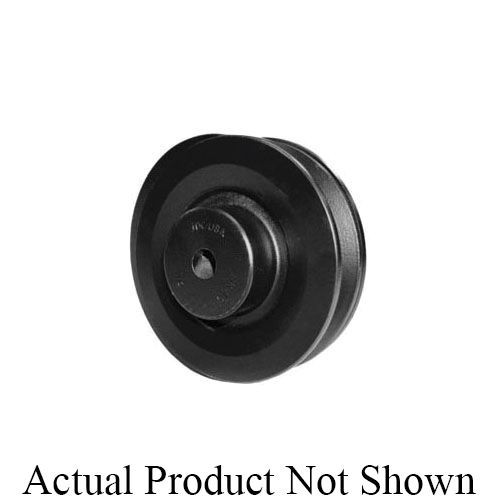

Selected IDC BK062-5/8IDC Select® IDC BK055-1/2 Light Duty Type 3 Single Groove Sheave With Setscrew, Bored to Size Bore, 1/2 in Dia Bore, 5-1/4 in OD, 4.9 in Dia Pitch, 7/8 in W Face
IDC BK062-5/8IDC Select® IDC BK055-1/2 Light Duty Type 3 Single Groove Sheave With Setscrew, Bored to Size Bore, 1/2 in Dia Bore, 5-1/4 in OD, 4.9 in Dia Pitch, 7/8 in W Face

Documents

Short Description

IDC Select® light duty bored-to-size sheaves are available in single and two groove designs for A-B and 3L-4L-5L belts. Each unit is supplied with a keyway and a set screw over the keyway. They are precision machined from 25 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

Features

  • Precision machined from gray cast iron
  • Statically balanced
  • Cast iron sheaves should not exceed 6500 fpm rim speed
  • Special or dynamic balancing should be considered when speeds exceed 5000 fpm
  • 3 in Dia pitch 4L/3.4 in Dia pitch 5L(B)

Specification

Hub Projection
13/32 in
Material
Class 25 Cast Iron
Outside Diameter
3-3/4 in
Minimum Order Qty
1
Order Interval
1
Bore Type
Bored to Size
Face Width
7/8 in
Finish
Baked Enamel
Suitable For Use With
4L/A and 5L/B Cross Section V-Belts
Type
Light Duty Type 2
Application
Air Handling, Mining, Wood Process, Agriculture, Aggregate, Oilfield, Air Compressor and Industrial Applications
Standard & Approvals
ASTM Specified, SAE Standard
Catalog ID
I-CBK036-1-1/8
Bore Diameter
1-1/8 in
Pitch Diameter
3.4 in
