IDC Select® IDC H60B15F-1-7/16 Finished Bore Type B Single Strand Roller Chain Sprocket, 1-7/16 in Dia Bore, 3.98 in OD, 60 Chain, 15 Teeth, 3/4 in Pitch, C1045 Steel

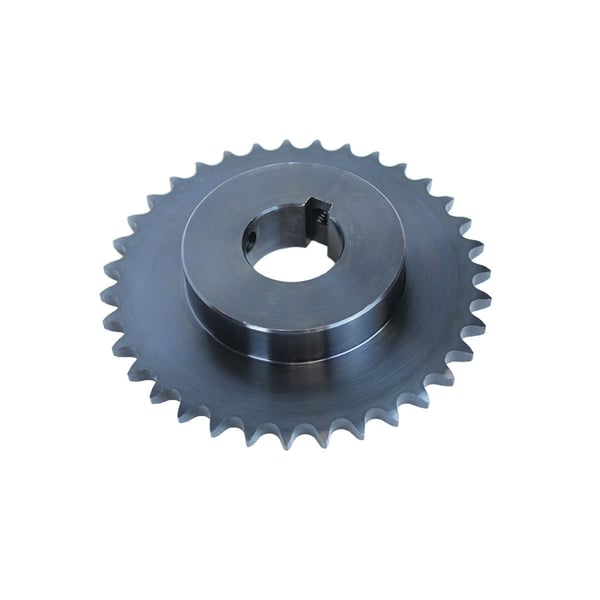

Selected IDC H100B13F 1
IDC H100B13F 1

Short Description

IDC Select® offers a wide range of high quality roller chain sprockets produced in ISO certified facilities to ANSI standards. Plain bore, finished bore, taper and QD® bushing designs are available. All IDC Select® sprockets come with hardened teeth and black oxide finish for long lasting service life. The finished bore design comes complete with a keyway on the centerline of the sprocket tooth and two setscrews, one over the keyway and one at 90 deg.

Features

  • Hardened teeth for longer life
  • Bored to size and ready to install

Specification

Keyway Size
3/8 in W x 3/16 in D
Length Through Bore
1-1/4 in
Material
C1045 Steel
Number of Teeth
15
Outside Diameter
3.98 in
Minimum Order Qty
1
Order Interval
1
Finish
Black Oxide
Standard & Approvals
ANSI Specified
Includes
(2) Setscrews
Pitch
3/4 in
Chain Size
60
Catalog ID
I-CH60B15F-1-7/16
Bore Diameter
1-7/16 in
Type
Finished Bore Type B
Pitch Diameter
3.607 in
Screw Size
3/8 in
