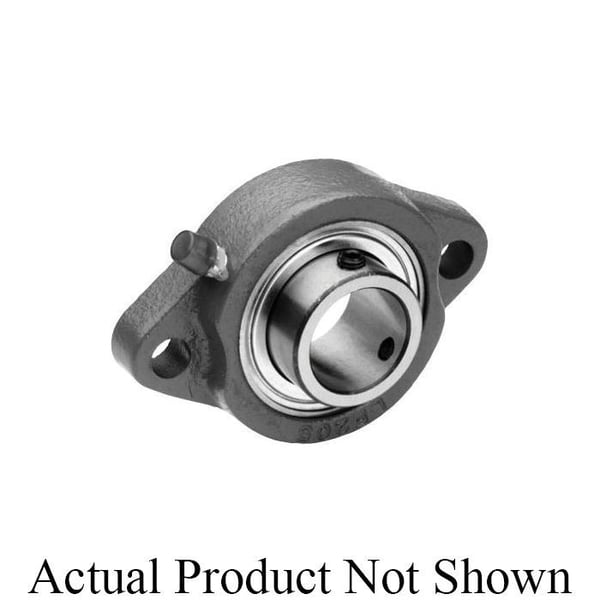

IDC Select® IDC SBLF205-14G SBLF Light Duty Flange Mount Ball Bearing Unit, 7/8 in Dia Bore, 3 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 3-3/4 in OAL/Dia

Selected IDC SBLF205-14GIDC Select® IDC SBLF205-14G SBLF Light Duty Flange Mount Ball Bearing Unit, 7/8 in Dia Bore, 3 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 3-3/4 in OAL/Dia
IDC SBLF205-14GIDC Select® IDC SBLF205-14G SBLF Light Duty Flange Mount Ball Bearing Unit, 7/8 in Dia Bore, 3 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 3-3/4 in OAL/Dia

Documents

Short Description

IDC Select® mounted bearings combine quality, innovation and affordability. Whether your bearing needs are light, standard or medium duty, IDC Select® offers a wide variety of options. Our mounted units feature a cast iron housing with a solid base, a wide inner ring bearing, dual heavy duty contact seals and steel plate slingers on both sides for dust exclusion. They also offer full self-alignment, a grease fitting for adding lubricant and set screw units with two setscrews 120 deg apart in the inner ring. Eccentric locking collar units provide locking for one directional applications. Triple lip seals are available on request. Washdown units are available in two versions. Stainless steel units have an electropolish finish and a thermoplastic (PBT) housing with a stainless steel insert.

Features

  • Wide inner ring heat treated for durability
  • Full self-alignment
  • Grease fitting for adding lubricant
  • Steel plate slingers on both sides for dust exclusion
  • Contact type seal
  • Cup point setscrews 120 deg apart lock unit securely to shaft

Specification

Load Capacity
3147.33 lb Dynamic/1764.75 lb Static
Locking Device
Set Screw
Overall Depth
1-7/32 in
Overall Height
2-17/32 in
Overall Length/Diameter
3-3/4 in
Seal Material
Synthetic Rubber
Series
SBLF
Temperature Rating
-40 to 250 deg F
Type
Light Duty
Standard & Approvals
ABMA Standard
Bolt Center-to-Center Length
3 in
Bore Diameter
7/8 in
Flange Mounting Type
2-Bolt
