IDC Select® IDC UCF208-40MM UCF Standard-Duty Flange Mount Ball Bearing Unit, 40 mm Dia Bore, 102 mm L Bolt Center-to-Center, 4-Bolt Square Flange Mount, 130 mm OAL/Dia

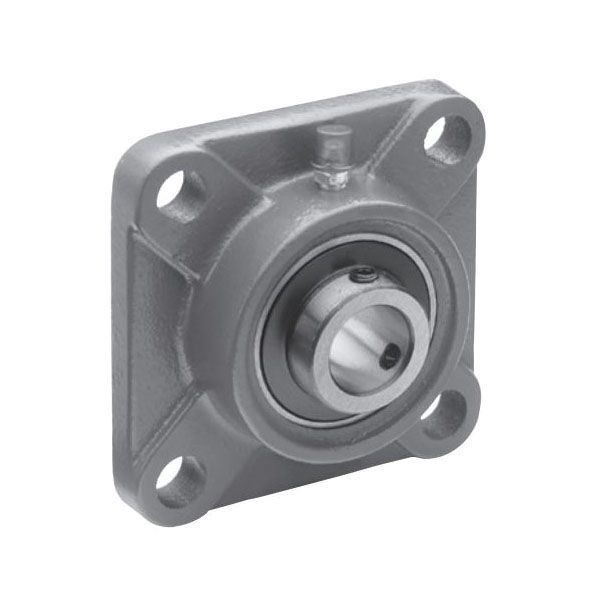

Selected IDC UCF209-27IDC Select® IDC UCF209-27 UCF Standard-Duty Flange Mount Ball Bearing Unit, 1-11/16 in Dia Bore, 4-9/64 in L Bolt Center-to-Center, 4-Bolt Square Flange Mount, 5-13/32 in OAL/Dia
IDC UCF209-27IDC Select® IDC UCF209-27 UCF Standard-Duty Flange Mount Ball Bearing Unit, 1-11/16 in Dia Bore, 4-9/64 in L Bolt Center-to-Center, 4-Bolt Square Flange Mount, 5-13/32 in OAL/Dia

Documents

Short Description

IDC Select® mounted bearings combine quality, innovation and affordability. Whether your bearing needs are light, standard or medium duty, IDC Select® offers a wide variety of options. Our mounted units feature a cast iron housing with a solid base, a wide inner ring bearing, dual heavy duty contact seals and steel plate slingers on both sides for dust exclusion. They also offer full self-alignment, a grease fitting for adding lubricant and set screw units with two setscrews 120 deg apart in the inner ring. Eccentric locking collar units provide locking for one directional applications. Triple lip seals are available on request. Washdown units are available in two versions. Stainless steel units have an electropolish finish and a thermoplastic (PBT) housing with a stainless steel insert.

Features

  • Wide inner ring heat treated for durability
  • Full self-alignment
  • Grease fitting for adding lubricant
  • Steel plate slingers on both sides for dust exclusion
  • Contact type seal
  • Cup point setscrews 120 deg apart lock unit securely to shaft

Specification

Load Capacity
29.5 kN Dynamic/18.1 kN Static
Locking Device
Set Screw
Overall Depth
51.2 mm
Overall Height
130 mm
Overall Length/Diameter
130 mm
Minimum Order Qty
1
Order Interval
1
Bolt Center-to-Center Length
102 mm
Bore Diameter
40 mm
Catalog ID
I-CUCF208-40MM
Flange Mounting Type
4-Bolt Square
Seal Material
Synthetic Rubber
Series
UCF
Temperature Rating
-40 to 250 deg F
Type
Standard-Duty
Standard & Approvals
ABMA Standard
