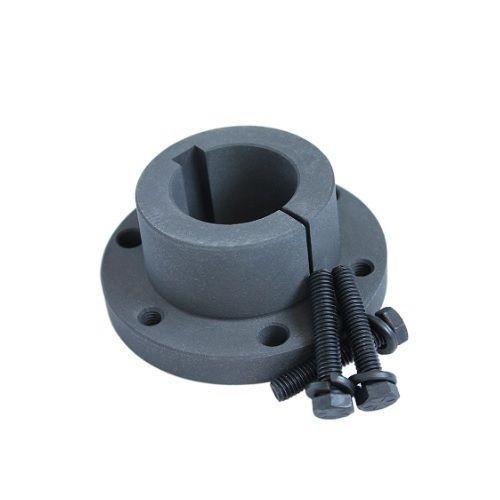

IDC Select® SF-2-7/8 QD Bushing SF Series, 2.875 in (2 7/8 in) Bore Diameter, 3 Set Screws, 3.875 in (3 7/8 in) Overall Length
IDC Select® SF-2-7/8 QD Bushing SF Series, 2.875 in (2 7/8 in) Bore Diameter, 3 Set Screws, 3.875 in (3 7/8 in) Overall Length
SKU: I-CSF-2-7/8
Manufacturer Part Number: SF-2-7/8
UPC: 900000124693
Documents
Features
Specification
| Hub Diameter | 3.125 in (3 1/8 in) |
|---|---|
| Number of Bolt Holes | 3 |
| Overall Length | 3.875 in (3 7/8 in) |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Bore Diameter | 2.875 in (2 7/8 in) |
| Catalog ID | I-CSF-2-7/8 |
| Flange Diameter | 4.625 in (4 5/8 in) |
| Flange Thickness | .625 in (5/8 in) |
| Screw Size | 3/8 x 2 |
| Series | SF |
| Type | QD Bushing |
