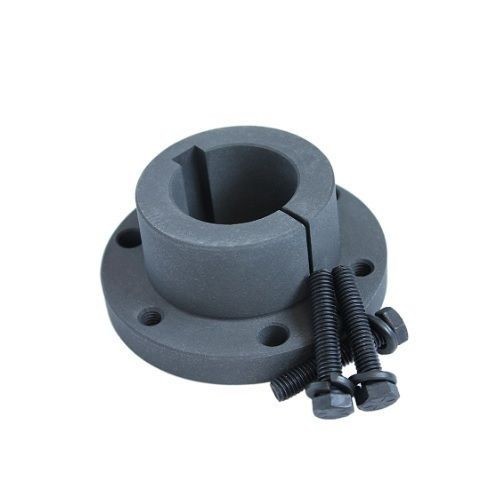

IDC Select® SH-1-3/16 QD Bushing, SH Series, 1.1875 in (1 3/16 in) Bore Diameter, 3 Set Screws, 1.3125 in (1 5/16 in) Overall Length
IDC Select® SH-1-3/16 QD Bushing, SH Series, 1.1875 in (1 3/16 in) Bore Diameter, 3 Set Screws, 1.3125 in (1 5/16 in) Overall Length
SKU: I-CSH-1-3/16
Manufacturer Part Number: SH-1-3/16
UPC: 900000117244
Documents
Specification
| Hub Diameter | 1.871 in |
|---|---|
| Number of Bolt Holes | 3 |
| Overall Length | 1.3125 in (1 5/16 in) |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Bore Diameter | 1.1875 in (1 3/16 in) |
| Catalog ID | I-CSH-1-3/16 |
| Flange Diameter | 2.6875 in (2 11/16 in) |
| Flange Thickness | .4375 in (7/16 in) |
| Screw Size | 1/4 x 1 3/8 |
| Series | SH |
| Type | QD Bushing |
