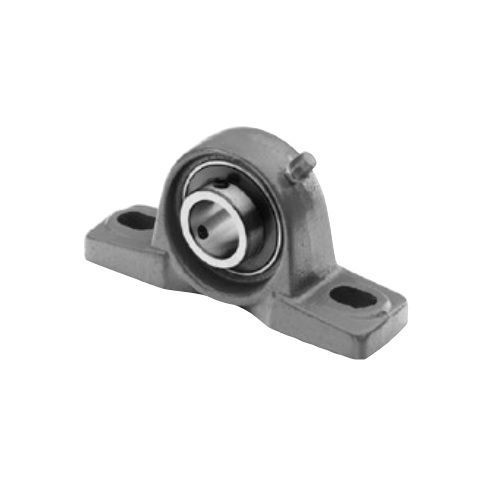

IDC Select® UCP207-23 Pillow Block Bearing, UCP Standard Duty 2-Bolt, 1.4375 in (1 7/16 in) Bore Dia, 6.5625 in (6 9/16 in) Overall L.
IDC Select® UCP207-23 Pillow Block Bearing, UCP Standard Duty 2-Bolt, 1.4375 in (1 7/16 in) Bore Dia, 6.5625 in (6 9/16 in) Overall L.
SKU: I-CUCP207-23
Manufacturer Part Number: UCP207-23
UPC: 900000059292
Documents
Features
- One-Piece Cast Iron Housing - Solid Base
- Wide Inner Ring Bearing
- Dual Heavy-Duty Slinger-Type Contact Seals
- Cup Point Set Screws 120º Apart Lock Unit Securely to Shaft
- Fully Self-Aligning
Specification
| Mounting Type | Set Screw |
|---|---|
| Overall Length | 6.5625 in (6 9/16 in) |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Bolt Center-to-Center Length | 5 in |
| Bore Diameter | 1.4375 in (1 7/16 in) |
| Series | UCP Standard Duty 2-Bolt |
| Type | Pillow Block Bearing |
| Catalog ID | I-CUCP207-23 |
