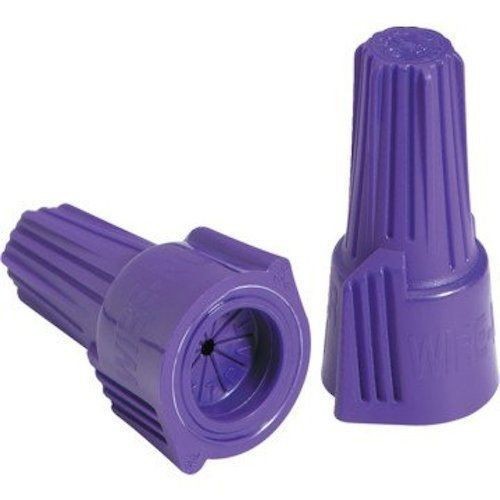

IDEAL® TWISTER® 30-065 65 Series Flame-Retardant Grounding Wire Connector, Swept Wing/Twist On Shell, Live Action/Square Wire Spring, 18 AWG, 12 AWG, 10 AWG Copper/Solid Aluminum Wire, Polypropylene
IDEAL® TWISTER® 30-065 65 Series Flame-Retardant Grounding Wire Connector, Swept Wing/Twist On Shell, Live Action/Square Wire Spring, 18 AWG, 12 AWG, 10 AWG Copper/Solid Aluminum Wire, Polypropylene
SKU: IDE30-065
Manufacturer Part Number: 30-065
UPC: 783250300655
Documents
Short Description
Features
- Only aluminum-to-copper twist-on connector specifically designed to provide a secure connection while preventing aluminum corrosion
- Pre-filled antioxidant compound prevents oxidation of aluminum conductors
- Swept wings and hexagonal head for easy installation by hand or with standard nut driver
- Live-action, square-wire spring expands and contracts with aluminum wire
- Hexagonal shape for standard nutdriver
- For tough environmental conditions
- No pre-twisting required
- 1000 V maximum in fixtures and signs
- 1/12 AWG Aluminum Solid With 1/18 AWG Copper Min And 1/10 AWG
- 2 to 3 aluminum to copper, 1 to 6 copper to copper conductors, (1) 12 AWG Al Solid with (1) 18 Cu AWG minimum and (1) 10 AWG wire combinations
- 2/Card
Specification
| Voltage Rating | 600 VAC |
|---|---|
| Finish | Zinc Plated |
| Color | Purple |
| Wire Type | Aluminum/Copper |
| Wire Size | 1/12 AWG |
| Dimensions | 0.65 in Dia x 0.8 in W x 1.34 in H |
| Standard & Approvals | C22.2 #188 CSA Certified, RoHS Compliant, UL 94V-2 Flammability Rating, UL 486C, UL 467 Listed |
| Application | For Insulating or Joining One or More Aluminum to Copper Conductors |
| Type | Flame-Retardant |
| Temperature Rating | 221 deg F |
| Spring Type | Live-Action/Square Wire |
| Shell Style | Swept Wing |
| Series | 65 |
| Material | Polypropylene Shell and Steel Spring |
