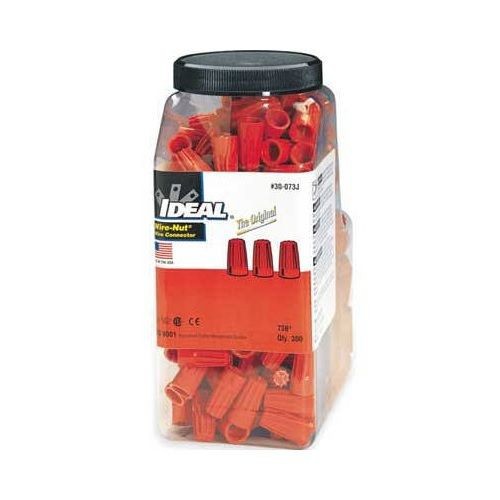

IDEAL® WIRE-NUT® 30-073J 73B® Flame-Retardant Wire Connector, Twist-On Shell, Fixed/Square Wire Spring, 22 to 14 AWG Solid/Stranded Copper Wire, Polypropylene

Selected IDEAL® WIRE-NUT® 30-073J 73B® Flame-Retardant Wire Connector, Twist-On Shell, Fixed/Square Wire Spring, 22 to 14 AWG Solid/Stranded Copper Wire, Polypropylene
IDEAL® WIRE-NUT® 30-073J 73B® Flame-Retardant Wire Connector, Twist-On Shell, Fixed/Square Wire Spring, 22 to 14 AWG Solid/Stranded Copper Wire, Polypropylene

Documents

Short Description

Wire-Nut® is perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications. The Wire-Nut® also features a tough, flame-retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition.

Features

  • Fixed, square-wire spring creates its own threads maintains a secure positive grip that will not relax over time
  • No pre-twisting required-positive grip design provides fast, easy installation
  • Deep skirt helps protect against flash-over
  • Reusable for easy circuit changes and additions
  • For tough environmental conditions
  • 5 color coded models
  • 1000 V maximum in fixtures and signs
  • 1 - 5 conductors, (1) 18 AWG with (1) 20AWG - (2) 14 AWG wire combinations
  • 300/Jar

Specification

Material
Polypropylene Shell and Steel Spring
Color
Orange
Finish
Zinc Plated
Temperature Rating
221 deg F
Type
Flame-Retardant
Voltage Rating
600 VAC
Wire Type
Aluminum/Copper
Application
For Insulating or Joining One or More Conductors
Standard & Approvals
C22.2 #188 CSA Certified, Federal Specification W-S-610E , RoHS Compliant, UL 94V-2 Flammability Rating, UL 486C Listed
Wire Size
22 to 14 AWG
Spring Type
Fixed/Square Wire
Specifications
3/8 in Solid, 5/16 in Stranded Wire Strip
Series
73B
Dimensions
7/16 in W x 55/64 in H
Catalog ID
IDE30-073J
Order Interval
300
Minimum Order Qty
300
