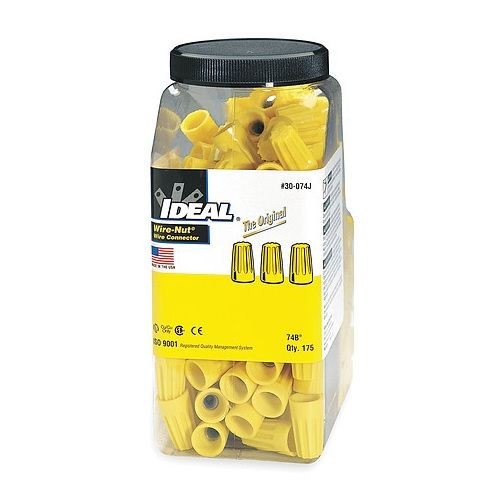

IDEAL® WIRE-NUT® 30-074J 74B® Flame-Retardant Wire Connector, Twist-On Shell, Fixed/Square Wire Spring, 18 to 12 AWG Solid/Stranded Copper Wire, Polypropylene

Selected IDEAL® WIRE-NUT® 30-074J 74B® Flame-Retardant Wire Connector, Twist-On Shell, Fixed/Square Wire Spring, 18 to 12 AWG Solid/Stranded Copper Wire, Polypropylene
IDEAL® WIRE-NUT® 30-074J 74B® Flame-Retardant Wire Connector, Twist-On Shell, Fixed/Square Wire Spring, 18 to 12 AWG Solid/Stranded Copper Wire, Polypropylene

Documents

Short Description

Wire-Nut® is perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications. The Wire-Nut® also features a tough, flame-retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition.

Features

  • Fixed, square-wire spring creates its own threads maintains a secure positive grip that will not relax over time
  • No pre-twisting required-positive grip design provides fast, easy installation
  • Deep skirt helps protect against flash-over
  • Reusable for easy circuit changes and additions
  • For tough environmental conditions
  • 5 color coded models
  • 1000 V maximum in fixtures and signs
  • 2 - 4 conductors, (2) 18 AWG - (4) 14 AWG and (1) 18 AWG wire combinations
  • 175/Jar

Specification

Material
Polypropylene Shell and Steel Spring
Series
74B
Specifications
7/16 in Solid, 3/8 in Stranded Wire Strip
Spring Type
Fixed/Square Wire
Temperature Rating
221 deg F
Type
Flame-Retardant
Voltage Rating
600 VAC
Wire Size
18 to 12 AWG
Wire Type
Aluminum/Copper
Application
For Insulating or Joining One or More Conductors
Standard & Approvals
C22.2 #188 CSA Certified, Federal Specification W-S-610E , RoHS Compliant, UL 94V-2 Flammability Rating, UL 486C Listed
Dimensions
35/64 in W x 61/64 in H
Color
Yellow
Finish
Zinc Plated
