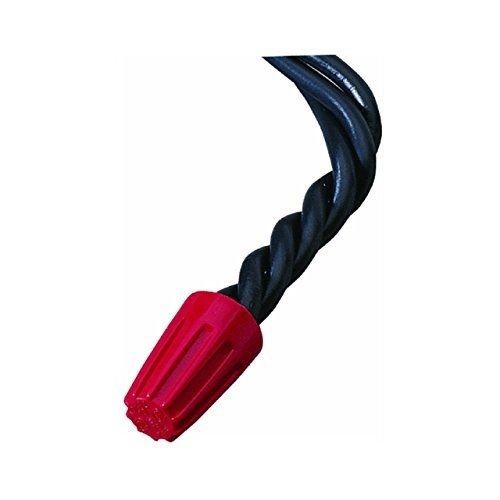

IDEAL® Wire-Nut® 30-076 Flame-Retardant Twist-On Wire Connector, 18 - 10 AWG

Selected 30-076IDEAL® Wire-Nut® 30-076 Flame-Retardant Twist-On Wire Connector, 18 - 10 AWG
30-076IDEAL® Wire-Nut® 30-076 Flame-Retardant Twist-On Wire Connector, 18 - 10 AWG

Short Description

Wire-Nut® is perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications. The Wire-Nut® also features a tough, flame-retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition.

Features

  • Fixed, square-wire spring creates its own threads maintains a secure positive grip that will not relax over time
  • No pre-twisting required-positive grip design provides fast, easy installation
  • Deep skirt helps protect against flash-over
  • Reusable for easy circuit changes and additions
  • For tough environmental conditions
  • 5 color coded models
  • 1000 V maximum in fixtures and signs
  • 1 - 6 conductors, (2) 14 AWG - (2) 10 AWG with (2) 12 AWG wire combinations
  • 100/Box

Specification

Material
Polypropylene Shell and Steel Spring
Series
76B
Specifications
1/2 in Solid, 7/16 in Stranded Wire Strip
Spring Type
Fixed/Square Wire
Temperature Rating
105 deg C
Type
Flame-Retardant
Voltage Rating
600 V
Wire Size
18 to 10 AWG
Wire Type
Aluminum/Copper
Application
For Insulating or Joining One or More Conductors
Standard & Approvals
C22.2 #188 CSA Certified, Federal Specification W-S-610E , RoHS Compliant, UL 94V-2 Flammability Rating, UL 486C Listed
Dimensions
1-1/16 in H x 9/32 in W
Color
Red
Finish
Zinc Plated
