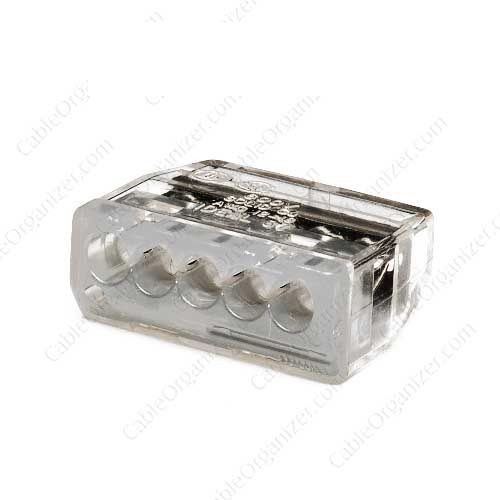

IDEAL® In-Sure™ 30-087J Push-In Wire Connector, 20 to 12 AWG, 18 to 14 AWG, 18 to 12 AWG Solid/Stranded/Tin-Bonded Wire, Polycarbonate
IDEAL® In-Sure™ 30-087J Push-In Wire Connector, 20 to 12 AWG, 18 to 14 AWG, 18 to 12 AWG Solid/Stranded/Tin-Bonded Wire, Polycarbonate
SKU: IDE30-087J
Manufacturer Part Number: 30-087J
UPC: 783250460779
Documents
Short Description
Features
- No-twist connection reduces repetitive motion fatigue
- Low insertion force for fast and easy connections
- Compact size makes installation easy
- Clear shell gives visual verification of connection
- 600 V maximum building wire, 1000 V maximum signs and lighting fixtures
- Tough, flame-retardant shell rated at 105 deg C
- Low insertion force may reduce risk of repetitive trauma injury
- Ground rating eliminates need for special "ground" connector
- Polycarbonate housing, stainless steel and copper contacts, tin-plated
- 12 - 20 AWG solid, 14 - 16 AWG (19 strand or less) 18 AWG (7 strand or less) stranded, 12 - 14 AWG (19 strand or less) 16 AWG (26 strand or less) 318 AWG (16 strand or less) stranded (tin-bonded)
Specification
| Material | Polycarbonate |
|---|---|
| Color | Gray |
| Finish | Tin Plated |
| Temperature Rating | 221 deg F |
| Type | Push-In |
| Voltage Rating | 600 VAC |
| Wire Size | 12 AWG |
| Specifications | 5 Port, 3/8 in - 1/2 in Strip |
| Series | 87 |
| Dimensions | 0.355 in L x 0.907 in W x 0.729 in H |
| Catalog ID | IDE30-087J |
| Order Interval | 150 |
| Minimum Order Qty | 150 |
| Standard & Approvals | CE Certified, C22.2 No 188 CSA Certified, RoHS Compliant, UL94 V-2 Flammability Rating, UL 486C, UL467 Listed |
| Application | For Grounding and Bonding Applications |
| Wire Type | Solid/Stranded/Stranded (Tin-Bonded) |
