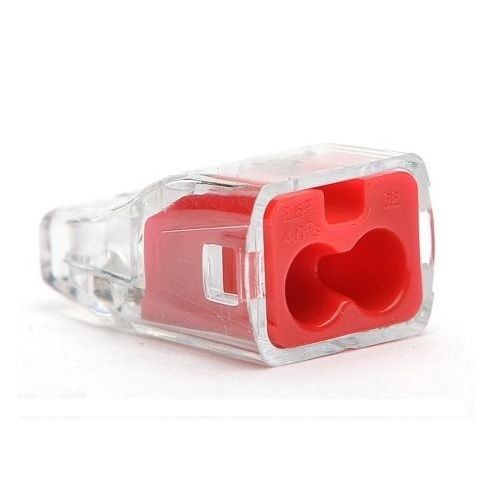

IDEAL® In-Sure™ 30-1032J Push-In Wire Connector, 20 to 12 AWG, 18 to 12 AWG, 18 to 14 AWG Solid/Stranded/Tin-Bonded Wire, Nylon/Polycarbonate

Selected IDEAL® In-Sure™ 30-1032J Push-In Wire Connector, 20 to 12 AWG, 18 to 12 AWG, 18 to 14 AWG Solid/Stranded/Tin-Bonded Wire, Nylon/Polycarbonate
IDEAL® In-Sure™ 30-1032J Push-In Wire Connector, 20 to 12 AWG, 18 to 12 AWG, 18 to 14 AWG Solid/Stranded/Tin-Bonded Wire, Nylon/Polycarbonate

Documents

Short Description

The In-Sure® Push-In Wire Connector is perfect for residential, light commercial, lighting retrofit, and pre-fab wiring systems, or any other branch circuit wiring application where a traditional twist-on wire connector would be used. Simply push the wire in – the low insertion force makes it easy.

Features

  • 600 V maximum building wire, 1000 V maximum signs and lighting fixtures
  • Low insertion force may reduce risk of repetitive trauma injury
  • Ground rating eliminates need for special "ground" connector
  • Compact size fits through 1/2 in KO allows more wiring options
  • Nylon/PC housing, copper contacts, tin plating
  • 12 - 20 AWG solid, 12 - 16 AWG (19 strand or less) 18 AWG (7 strand) stranded, 14 - 18 AWG (19 strand or less) stranded (tin-bonded)

Specification

Material
Nylon/Polycarbonate
Series
32
Specifications
2 Port, 3/8 in - 1/2 in Strip
Temperature Rating
221 deg F
Type
Push-In
Voltage Rating
600 VAC
Wire Size
12 AWG
Wire Type
Solid/Stranded/Stranded (Tin-Bonded)
Application
For Grounding and Bonding Applications
Standard & Approvals
CE Certified, C22.2 No 188 CSA Certified, IEC 998-2-2, RoHS Compliant, UL 94V-2 Flammability Rating, UL 486C, UL467 Listed
Dimensions
0.78 in L x 0.52 in W x 0.38 in H
Color
Red/Transparent
Finish
Tin Plated
