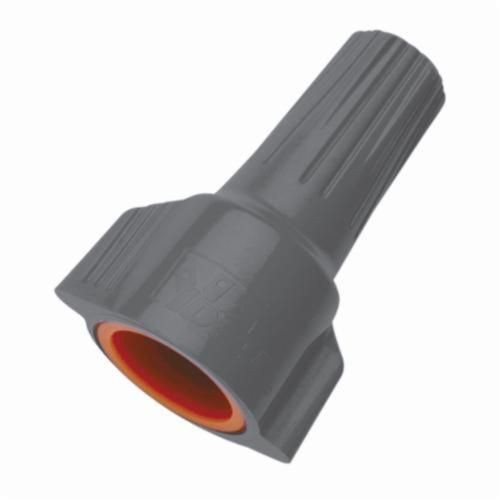

IDEAL® WEATHERPROOF® 30-1161 61® Series Wire Connector, Swept Wing/Twist-On Shell, Live Action/Square Wire Spring, 22 to 14 AWG Solid/Stranded Copper Wire, Thermoplastic Polyester
IDEAL® WEATHERPROOF® 30-1161 61® Series Wire Connector, Swept Wing/Twist-On Shell, Live Action/Square Wire Spring, 22 to 14 AWG Solid/Stranded Copper Wire, Thermoplastic Polyester
SKU: IDE30-1161
Manufacturer Part Number: 30-1161
UPC: 783250758142
Short Description
Features
- 100% silicone-based sealant protects against moisture and corrosion
- Swept wing design is built for comfort and efficiency
- Hexagonal shape allows connectors to be applied with standard nutdriver
- No pre-twisting required
- Live-action, square-wire spring for secure and long-lasting connection
- Spin-twist® wire connector socket application tool
- Eliminates the need for heat-shrink or excessive taping
- 1000 V maximum in fixtures and signs
- Easy to apply, pre-filled twist-on wire connectors saves time and improves productivity
- Thicker thermoplastic for extreme durability in harsh environments
- (2) 20 AWG - (2) 14 AWG wire combinations
- 25/Card
Specification
| Material | Thermoplastic Polyester Shell and Steel Spring |
|---|---|
| Spring Type | Live-Action/Square Wire |
| Temperature Rating | 105 deg C |
| Type | Flame-Retardant |
| Voltage Rating | 600 VAC |
| Wire Size | 22 to 14 AWG |
| Wire Type | Aluminum/Copper |
| Finish | Zinc Plated |
| Specifications | 3/8 in Wire Strip |
| Shell Style | Swept Wing |
| Series | 61 |
| Color | Grey/Orange |
| Dimensions | 0.49 in Dia x 0.65625 in W x 0.90625 in H |
| Standard & Approvals | CE Approved, CSA Certified, UL 94V-2 Flammability Rating, UL 486C, UL 486D Listed |
| Application | For Automatic Carwashes, Basement, Bathroom or Spa Vent Fans, Car-Port Circuits and Garage, Decorative Patio and Deck Lighting, Exterior Area and Security Lighting, Industrial Hosedown or Washdown, Marine Shore-Power and Dock Lighting, Outdoor Power Outlets, Outdoor Signage and Traffic-Signal Control Circuits |
