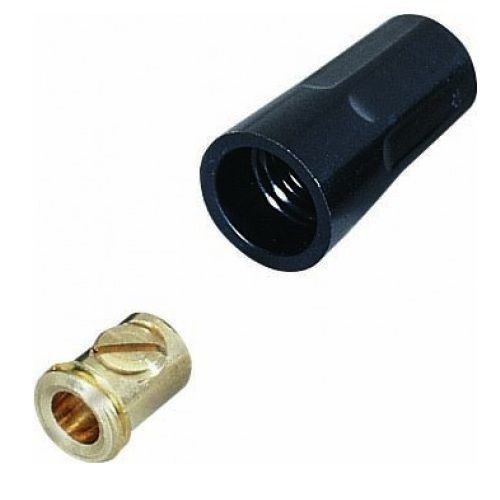

IDEAL® 30-211 Set Screw Connector, 22 to 10 AWG Copper Wire, Slotted Screw, Brass/Polypropylene

Selected IDEAL® 30-211 Set Screw Connector, 22 to 10 AWG Copper Wire, Slotted Screw, Brass/Polypropylene
IDEAL® 30-211 Set Screw Connector, 22 to 10 AWG Copper Wire, Slotted Screw, Brass/Polypropylene

Documents

Short Description

IDEAL's set screw wire connectors ensure a vibration-resistant splice, perfect for applications near motors or other vibration. The solid brass sleeve inserts come in three sizes, allowing wire ranges 22 AWG - 10 AWG. Each package contains plastic caps, allowing for insulation of the splice after installation, as well as a set screw holder to allow for ease of installation.

Features

  • Eliminates need for restriping wire each time connection is disturbed
  • Solid brass sleeves
  • Set-screw easily and securely applies maximum compression to conductors to ensure a vibration-resistant splice
  • Permits fast visual inspection of splice
  • Tough, flame-retardant shell rated at 150 deg C (302 deg F)
  • Flame retardant polypropylene shell
  • 11 model no
  • Min (1) 14 AWG with (1) 20 AWG - Max (3) 14 AWG with (2) 18 AWG wire combination range

Specification

Screw Type
Slotted
Temperature Rating
302 deg F
Type
Set Screw
Voltage Rating
600 VAC
Standard & Approvals
C22.2 No 188 CSA Certified, RoHS Compliant, UL 486C Listed, W-S-610E Federal Specification
Color
Black
Material
Brass
Includes
(1) K-2422 Set Screw Holder
Dimensions
33/64 in W x 63/64 in H
Wire Size
22 to 10 AWG
Specifications
1 to 6 Conductor, 29/64 in H x 13/32 in W Connector
