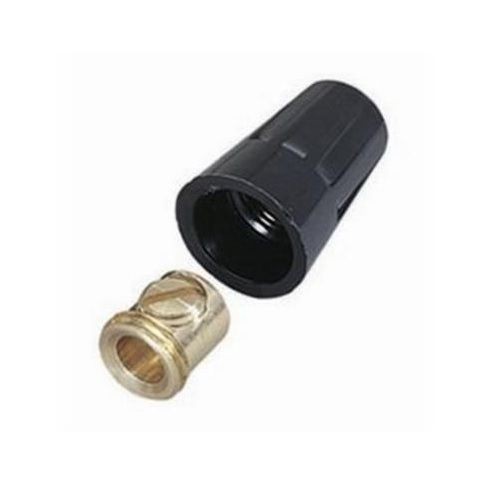

IDEAL® 30-322 Set Screw Connector, 20 to 10 AWG Copper Wire, Slotted Screw, Brass/Polypropylene

Selected IDEAL® 30-322 Set Screw Connector, 20 to 10 AWG Copper Wire, Slotted Screw, Brass/Polypropylene
IDEAL® 30-322 Set Screw Connector, 20 to 10 AWG Copper Wire, Slotted Screw, Brass/Polypropylene

Documents

Short Description

Set screw wire connectors from IDEAL® ensure a vibration-resistant splice, perfect for applications near motors or other vibration. The solid brass sleeve inserts come in three sizes, allowing wire ranges 22 to 10 AWG. Each package contains plastic caps, allowing for insulation of the splice after installation, as well as a set screw holder to allow for ease of installation.

Features

  • Eliminates need for restriping wire each time the connection is disturbed
  • Solid brass sleeves
  • Set screw easily and securely applies maximum compression to conductors to ensure a vibration-resistant splice
  • Permits fast visual inspection of splice
  • Tough, flame retardant shell rated at 302 deg F

Specification

Material
Brass/Polypropylene
Minimum Order Qty
1000
Order Interval
1000
Catalog ID
IDE30-322
Color
Black
Dimensions
11/16 in W x 1-1/64 in H
Screw Type
Slotted
Temperature Rating
302 deg F
Voltage Rating
600 VAC
Wire Size
20 to 10 AWG
Wire Type
Copper
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, CSA C22.2 No. 188, UL 486C, Federal Specification W-S-610E
Specifications
1 to 6 Conductors, (1) 16 AWG with (3) 18 AWG Minimum, (2) 10 AWG with (1) 12 AWG Maximum Wire Combination Range
Series
22 Series
Includes
(1) K-2422 Set Screw Holder
