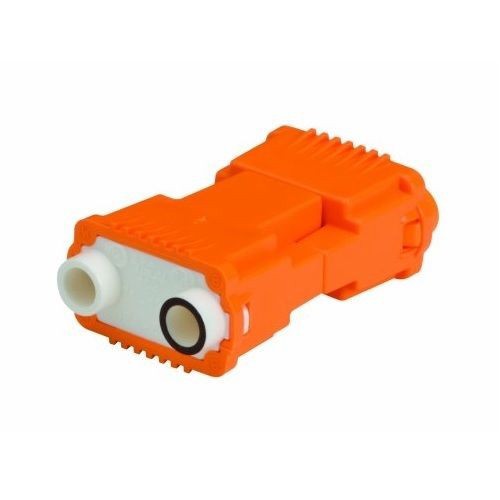

IDEAL® PowerPlug® 30-382J 2-Wire Luminaire Disconnect, 18 - 12 AWG Solid Wire, 1.4 in OAL, 2 Ports, Retrofits Insulation

Selected FilesIDE30 382J
FilesIDE30 382J

Documents

Short Description

The PowerPlug® Luminaire Disconnect features patented IDEAL push-in technology that quickly locks wires in place. It helps reduce electrical shock hazard during luminaire replacement by safely disconnecting the wiring while offering additional safety since both halves meet UL and CSA finger-probe safety requirements. The entire family easily fits through 1/2-inch knockouts for quick installation.

Features

  • Meets CEC and NEC code changes for non-residential fluorescent luminaries with ballasts
  • Fits through knockout for 1/2 in MC cable
  • Pieces pull apart safely and easily
  • Patented push-in technology quickly locks wires in place
  • Allows for safe disconnect of hot and neutral ballast wiring
  • 10 cycles minimum current interruption
  • Made of Nylon
  • Thumb ridges provide superior grip
  • Push-in technology results in quicker connections, saving time and increasing productivity
  • 18 - 12 AWG solid, 14 - 12 AWG stranded, 18, 16, 14 - 12 AWG stranded tin-bonded
  • 102 model
  • Perfect for OEM or retrofit lighting applications

Specification

Voltage Rating
600 V
Overall Length
1.4 in
Specifications
6 A Current, 3/8 in Strip Indicator
Finish
Tin Plated
Insulation Type
Retrofits
Material
Nylon
Number of Ports
2
Wire Size
18 to 12 AWG Solid
Temperature Rating
105 deg C
Connection Type
Push-In
Type
2-Wire
Connection Material
Copper Alloy
Series
100
Application
For 1-Ballast Fixture New Installations and Retrofits
Standard & Approvals
182.3 CSA Certified, CEC, NEC, RoHS Compliant, UL 94V-0 Flammability Rating, UL 2459 Listed
Color
Orange/White
