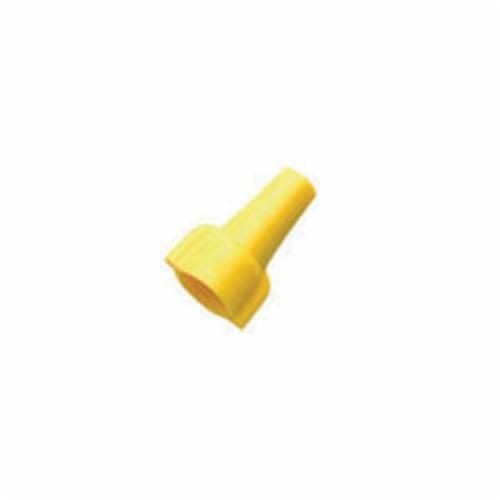

IDEAL® Wing-Nut® 30-651J 451® Flame-Retardant Wire Connector, Contoured Winged/Twist On Shell, Live Action/Square Wire Spring, 18 to 10 AWG Solid/Stranded Wire, Polypropylene
IDEAL® Wing-Nut® 30-651J 451® Flame-Retardant Wire Connector, Contoured Winged/Twist On Shell, Live Action/Square Wire Spring, 18 to 10 AWG Solid/Stranded Wire, Polypropylene
SKU: IDE30-651J
Manufacturer Part Number: 30-651J
UPC: 783250631742
Short Description
Features
- Specially designed contoured wings provide a secure grip for extra leverage on maximum wire combinations
- Live-action spring expands to accept wire shape and size with no pre-twisting required, Square-wire spring threads directly onto conductors for fast, secure connections
- No pre-twisting required
- Deep skirt helps protect against flash-over
- Reusable
- For tough environmental conditions
- 3 color coded models
- 1000 V maximum in fixtures and signs
- 1 - 6 conductors, (2) 18 AWG - (3) 12 AWG wire combinations
- 500/Jar
Specification
| Material | Thermoplastic Polyester Shell and Steel Spring |
|---|---|
| Series | 451 |
| Shell Style | Contoured Winged |
| Specifications | 3/8 in Solid/Stranded Wire Strip |
| Spring Type | Live-Action/Square Wire |
| Temperature Rating | 221 deg F |
| Type | Flame-Retardant |
| Voltage Rating | 600 VAC |
| Wire Size | 18 to 10 AWG |
| Wire Type | Aluminum/Copper |
| Application | For Insulating or Joining Two or More Conductors, Wire Termination/Connection |
| Standard & Approvals | C22.2 #188 CSA Certified, Federal Specification W-S-610E , RoHS Compliant, UL 94V-2 Flammability Rating, UL 486C Listed |
| Dimensions | 0.48 in Dia x 1.015625 in W x 0.6875 in H |
| Color | Yellow |
| Finish | Zinc Plated |
