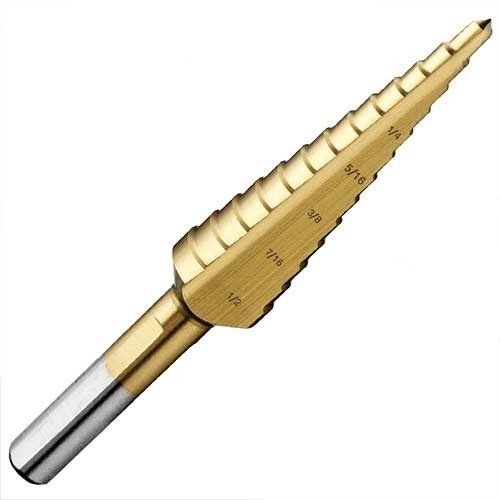

IDEAL® 35-513 Step Drill Bit, 1/4 in Dia Min Hole, 7/8 in Dia Max Hole, 11 Hole Sizes, 3/8 in Dia Shank

Selected IDEAL® 35-513 Step Drill Bit, 1/4 in Dia Min Hole, 7/8 in Dia Max Hole, 11 Hole Sizes, 3/8 in Dia Shank
IDEAL® 35-513 Step Drill Bit, 1/4 in Dia Min Hole, 7/8 in Dia Max Hole, 11 Hole Sizes, 3/8 in Dia Shank

Documents

Short Description

Trust IDEAL step drill bits for precise, repetitive drilling through the toughest materials including brass, carbon steel, cast iron, stainless steel, and more. These tough and reliable tools are constructed with a rugged titanium nitrite exterior coating. Each step is gradually blended to ease stepping through hole sizes; reducing the need to keep changing drill bits, which speeds up the fabrication process. Improved Split-Point tip design eliminates the need for a starter hole or punch and delivers three times faster starts, saving valuable time. The double-fluted design provides balanced cuts and cooler operation.

Features

  • Trust Ideal step drill bits for precise, repetitive drilling through the toughest materials including brass
  • Carbon steel, cast iron, stainless steel, and more
  • Self-starting point eliminates starter holes or punches
  • Double-fluted design for balanced cuts and cooler operation
  • Unique titanium coating extends drill life six times longer than other step drills
  • 1/16 in Step Thickness
  • 1/16 in Step Increments

Specification

Material
Steel
Maximum Hole Diameter
7/8 in
Minimum Hole Diameter
1/4 in
Number of Hole Sizes
11
Minimum Order Qty
1
Order Interval
1
Catalog ID
IDE35-513
Finish
Titanium Nitride
Point Type
Split
Shank Size
3/8 in Dia
Standard & Approvals
RoHS Compliant
