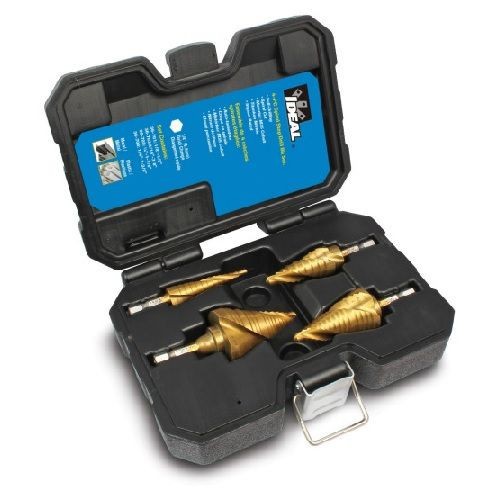

IDEAL® 36-700 Spiral Step Drill Bit Kit, 1/8 in, 3/16 in, 1/4 in Min Drill Bit, 1/2 in, 7/8 in, 1-1/8 in, 1-3/8 in Max Drill Bit, 4 Pieces, M35 HSS/Cobalt, TiN Coated

Selected IDEAL® 36-700 Spiral Step Drill Bit Kit, 1/8 in, 3/16 in, 1/4 in Min Drill Bit, 1/2 in, 7/8 in, 1-1/8 in, 1-3/8 in Max Drill Bit, 4 Pieces, M35 HSS/Cobalt, TiN Coated
IDEAL® 36-700 Spiral Step Drill Bit Kit, 1/8 in, 3/16 in, 1/4 in Min Drill Bit, 1/2 in, 7/8 in, 1-1/8 in, 1-3/8 in Max Drill Bit, 4 Pieces, M35 HSS/Cobalt, TiN Coated

Documents

Short Description

The IDEAL® line of spiral step bits enables you to save time with titanium nitride spiral cutting action. Each step has a gradual relief that eases into each cut reducing the need to change drill bits. This provides an economical way to save you valuable time on the project. Manufactured out of M35 High Speed Steel with Cobalt, providing strength and durability, the bit design has balanced hardened edges and 1/4 in hex shank that makes them compatible not only with cordless drills but also optimized for impact drivers. The split point tip eliminates the need for a starter pilot hole and minimizes walking on the material for quick startup on any project. Titanium nitride coating lowers the cooling time, extending the life for repetitive drilling through the toughest of materials. IDEAL® Step Drill bits feature a spiral cutting action providing faster chip removal, less vibration and faster drilling rate which minimizes binding while drilling.

Features

  • Rugged, durable molded plastic case with metal latch
  • Kit provides a solution for every electrical hole size between 1/8 in and 1-3/8 in
  • Recommended rpm for step drill bits less than or equal to 7/8 in 470 to 650 rpm

Specification

Material
M35 HSS/Cobalt
Number of Pieces
4
Minimum Order Qty
1
Order Interval
1
Catalog ID
IDE36-700
Finish
TiN Coated
System of Measurement
Imperial
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant
Includes
36-701 #1 Step Drill Bit, 36-703 #4 Step Drill Bit, 36-705 #9 Step Drill Bit, 36-706 #6 Step Drill Bit and Rugged, Durable Molded Plastic Case with Metal Latch
